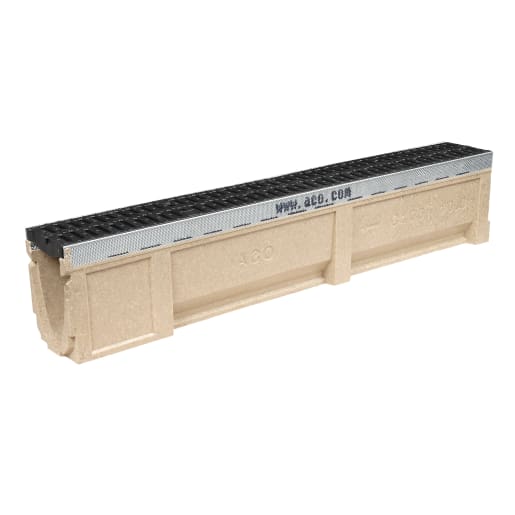

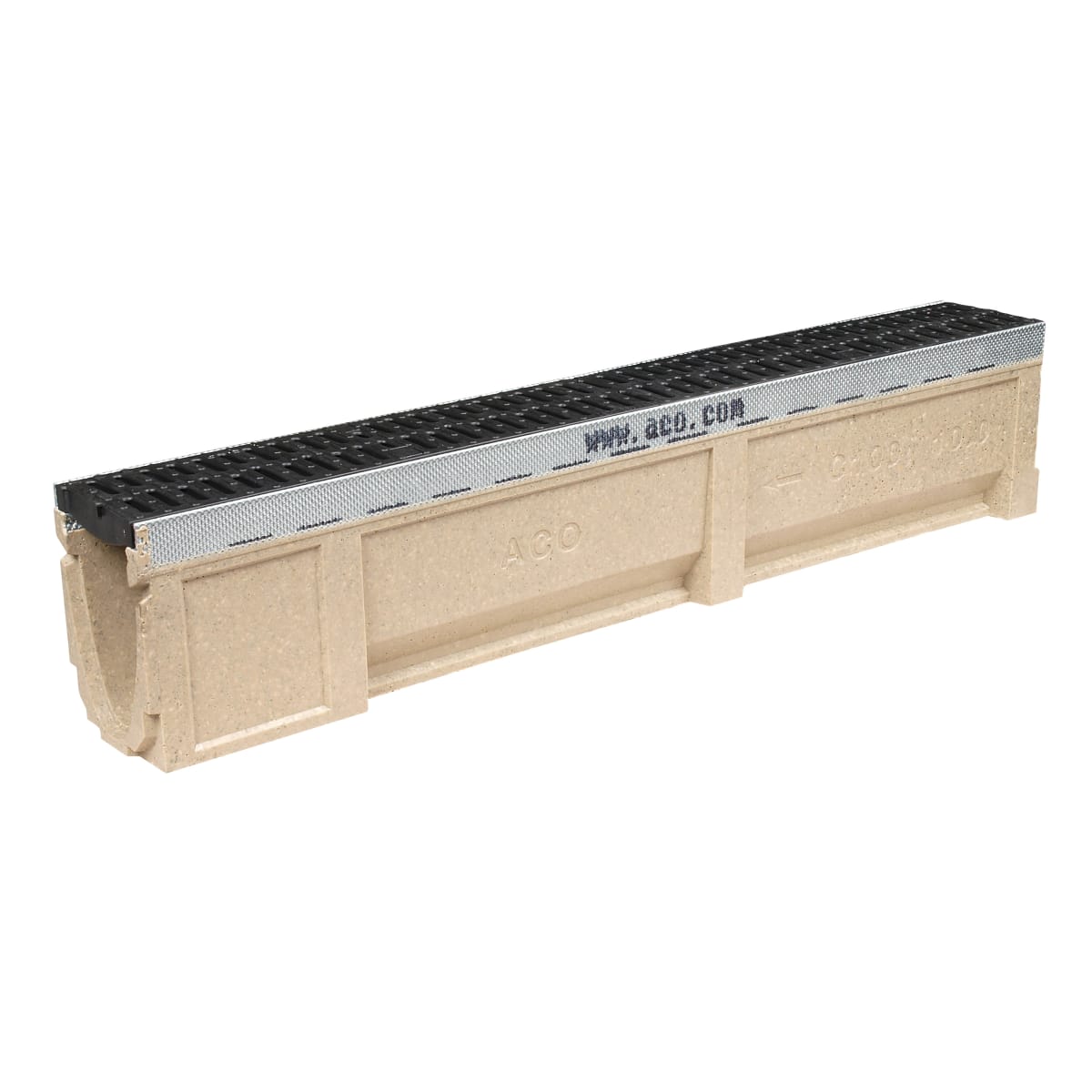

ACO CivicDrain No 10.0 Drainage Channel Assembly with Black Composite Heelguard™ Grating 1000mm
SKU: DRACO345
Manufactured from Vienite, ACO’s high strength polymer concrete material, CivicDrain is suitable for vehicle traffic up to Load Class C 250.Supplied complete with a corrosion resistant black composite Heelguard grating, ideal for pedestrian traffic. The ACO Drainlock grating has a bar-less locking device, allowing for quick and simple installation of gratings. A full range of accessories are available, designed to aid simple and fast installation.
Features & benefits
- Anti-shunt prevents grating movement once installed
- ACO Drainlock grating - this bar-less locking device allows quick and simple installation of gratings
- Protective galvanised steel edge rails for improved strength
- Strong and lightweight polymer concrete design improves stability
- Heelguard gratings with 8mm slots
- UKCA and CE marked and fully certified to Load Class C 250 BS EN 1433:2002
- Knockout for connection to 110mm PVC-U pipe via drain union
- Male and female channel connections to aid accurate installation
- Profile improves speed of water and promotes self cleansing
- Sealant groove for simple watertight installation
IDDRACO345
Electrics & Plumbing > Drainage > Below Ground Drainage > ACO CivicDrain No 10.0 Drainage Channel Assembly with Black Composite Heelguard™ Grating 1000mm
https://www.jewson.co.uk/p/aco-civicdrain-no-10-0-drainage-channel-assembly-with-black-composite-heelguard-grating-1000mm-DRACO345
Manufactured from Vienite, ACO’s high strength polymer concrete material, CivicDrain is suitable for vehicle traffic up to Load Class C 250.Supplied complete with a corrosion resistant black composite Heelguard grating, ideal for pedestrian traffic. The ACO Drainlock grating has a bar-less locking device, allowing for quick and simple installation of gratings. A full range of accessories are available, designed to aid simple and fast installation.
Features & benefits
- Anti-shunt prevents grating movement once installed
- ACO Drainlock grating - this bar-less locking device allows quick and simple installation of gratings
- Protective galvanised steel edge rails for improved strength
- Strong and lightweight polymer concrete design improves stability
- Heelguard gratings with 8mm slots
- UKCA and CE marked and fully certified to Load Class C 250 BS EN 1433:2002
- Knockout for connection to 110mm PVC-U pipe via drain union
- Male and female channel connections to aid accurate installation
- Profile improves speed of water and promotes self cleansing
- Sealant groove for simple watertight installation
Specifications
| Product Name | ACO CivicDrain No 10.0 Drainage Channel Assembly with Black Composite Heelguard™ Grating 1000mm |
| Brand | CivicDrain |
| Product Type | Drainage Channels |
| Manufacturer Name | ACO Technologies |
| Manufacturer Part Number | 25011 |
| EAN | 5030810250116 |
| Compliance Approvals | UKCA, CE |
| Warranty Period | 12 months |
| Materials | Polymer Concrete |
| Commercial Or Domestic Use | Both |
| Colour | Natural |
| Application | Below Ground Drainage |
| Pack Quantity | 1 |
| Applicable Standards | BS EN 1433:2002 |
| Recyclable | Yes |
| Renewable | Yes |
| Product Width | 135 mm |
| Product Weight | 18.8 kg |
| Product Height | 200 mm |
| Product Length | 1000 mm |
