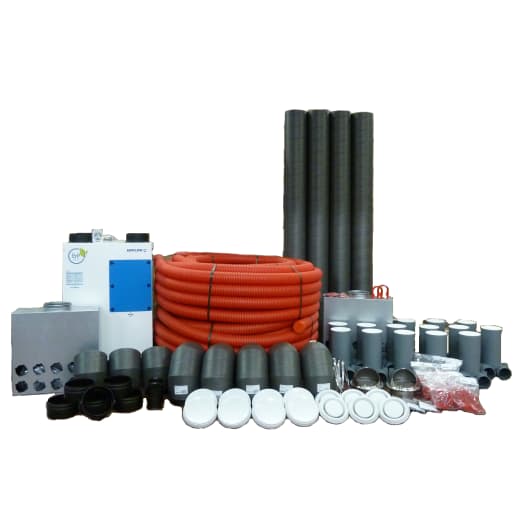

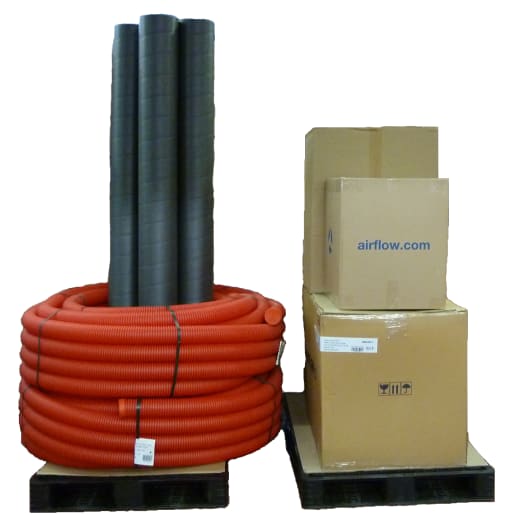

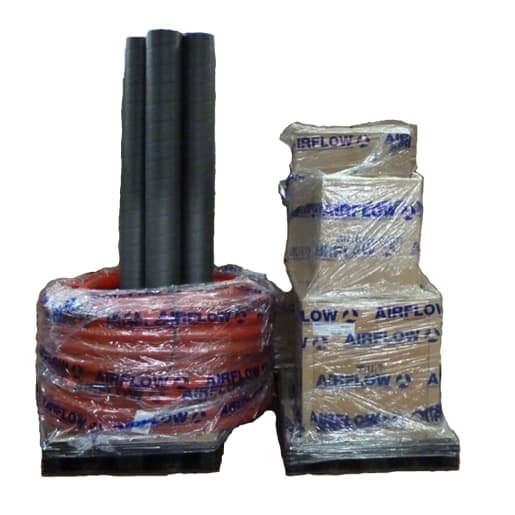

Airflow DV82 Entro-V MVHR Kit For 184m² Dwelling - 2 Pallets

SKU: AIR91655
The Entro-V ventilation units with heat recovery are available for a large variety of building sizes. The supply and extract of air to and from rooms is done through antistatic smooth bore, with the hygienically lined AirflexPro ducting ensuring minimal in-duct airflow noise and dirt accumulation. It is supplied economically straight from the roll, and the durable, ribbed outer skin of AirflexPro offers excellent flexibility, strength and compressibility, up to 10 kN/m2. These properties make it ideally suited for embedding straight into concrete screed without distortion, ensuring predicted airflow rates through ducts are maintained. The medium sized unit in the range, Entro-V DV82 supplies up to 300 m3/h (83.3 l/s). Hanging brackets, screws and feet are supplied with the unit which has interchangeability of spigots position from top to the sides. In addition to high quality individual ventilation components, an overall integrated concept is essential to a well-functioning ventilation system. Airflow offers the ideal ventilation system solutions and guarantees easy design, safe installations, and maximum efficiency. ​​​​​​​ ​​​​​​​​​​​​​​Customer will need forklift or multiple people to offload (due to size/weight)
Features & benefits
  • 300 m3 /h (83.3 l/s) maximum air flow rate @100Pa
  • Complete domestic and residential heat recovery ventilation system
  • Thermal efficiency capabilities of up to 85%
  • 2x ISO ePM Coarse 55% (G4) filters as standard with an extra supply air filter location for an optional ISO ePM1 60% (F7) - ISO 16890 compliant
  • Suitable for left/right-hand configurations and can be installed in vertical mounting positions, on the wall or floor
  • Ideal ventilation system solution for easy design, safe installation and maximum efficiency
  • Kit includes AirflexPro radial ducting system, suited to a new build and retrofit market
  • Reduces overall energy and heating bill costs
  • Improves indoor air quality as well as helping to prevent mould and mildew build-up
  • SAP tested and PCDB listed MVHR unit
IDAIR91655 Electrics & Plumbing > Ventilation > MVHR > Airflow DV82 Entro-V MVHR Kit For 184m² Dwelling - 2 Pallets
Trade

Get lower prices with a Jewson account

£3,077.34 inc VAT, Each
2564.45 http://schema.org/InStock


Please sign in/register to save items.

The Entro-V ventilation units with heat recovery are available for a large variety of building sizes. The supply and extract of air to and from rooms is done through antistatic smooth bore, with the hygienically lined AirflexPro ducting ensuring minimal in-duct airflow noise and dirt accumulation. It is supplied economically straight from the roll, and the durable, ribbed outer skin of AirflexPro offers excellent flexibility, strength and compressibility, up to 10 kN/m2. These properties make it ideally suited for embedding straight into concrete screed without distortion, ensuring predicted airflow rates through ducts are maintained. The medium sized unit in the range, Entro-V DV82 supplies up to 300 m3/h (83.3 l/s). Hanging brackets, screws and feet are supplied with the unit which has interchangeability of spigots position from top to the sides. In addition to high quality individual ventilation components, an overall integrated concept is essential to a well-functioning ventilation system. Airflow offers the ideal ventilation system solutions and guarantees easy design, safe installations, and maximum efficiency. ​​​​​​​ ​​​​​​​​​​​​​​Customer will need forklift or multiple people to offload (due to size/weight)
Features & benefits
  • 300 m3 /h (83.3 l/s) maximum air flow rate @100Pa
  • Complete domestic and residential heat recovery ventilation system
  • Thermal efficiency capabilities of up to 85%
  • 2x ISO ePM Coarse 55% (G4) filters as standard with an extra supply air filter location for an optional ISO ePM1 60% (F7) - ISO 16890 compliant
  • Suitable for left/right-hand configurations and can be installed in vertical mounting positions, on the wall or floor
  • Ideal ventilation system solution for easy design, safe installation and maximum efficiency
  • Kit includes AirflexPro radial ducting system, suited to a new build and retrofit market
  • Reduces overall energy and heating bill costs
  • Improves indoor air quality as well as helping to prevent mould and mildew build-up
  • SAP tested and PCDB listed MVHR unit

Specifications
Product Name Airflow DV82 Entro-V MVHR Kit For 184m² Dwelling - 2 Pallets
Brand Entro MVHR
Product Type MVHR Kits
Manufacturer Name Airflow Developments Ltd
Manufacturer Part Number 90001655
EAN 5019009330945
Compliance Approvals ErP compliant; UKCA / CE compliant; SAP tested and PCDB listed
Warranty Period 2  years
Output Power 166  W
Commercial Or Domestic Use Domestic
Application Interior
Pack Quantity 1
Applicable Standards Part F and Part L of the Building Regulations compliant
Voltage 230  V
Coverage 184  m2
Recyclable Yes
Renewable Yes

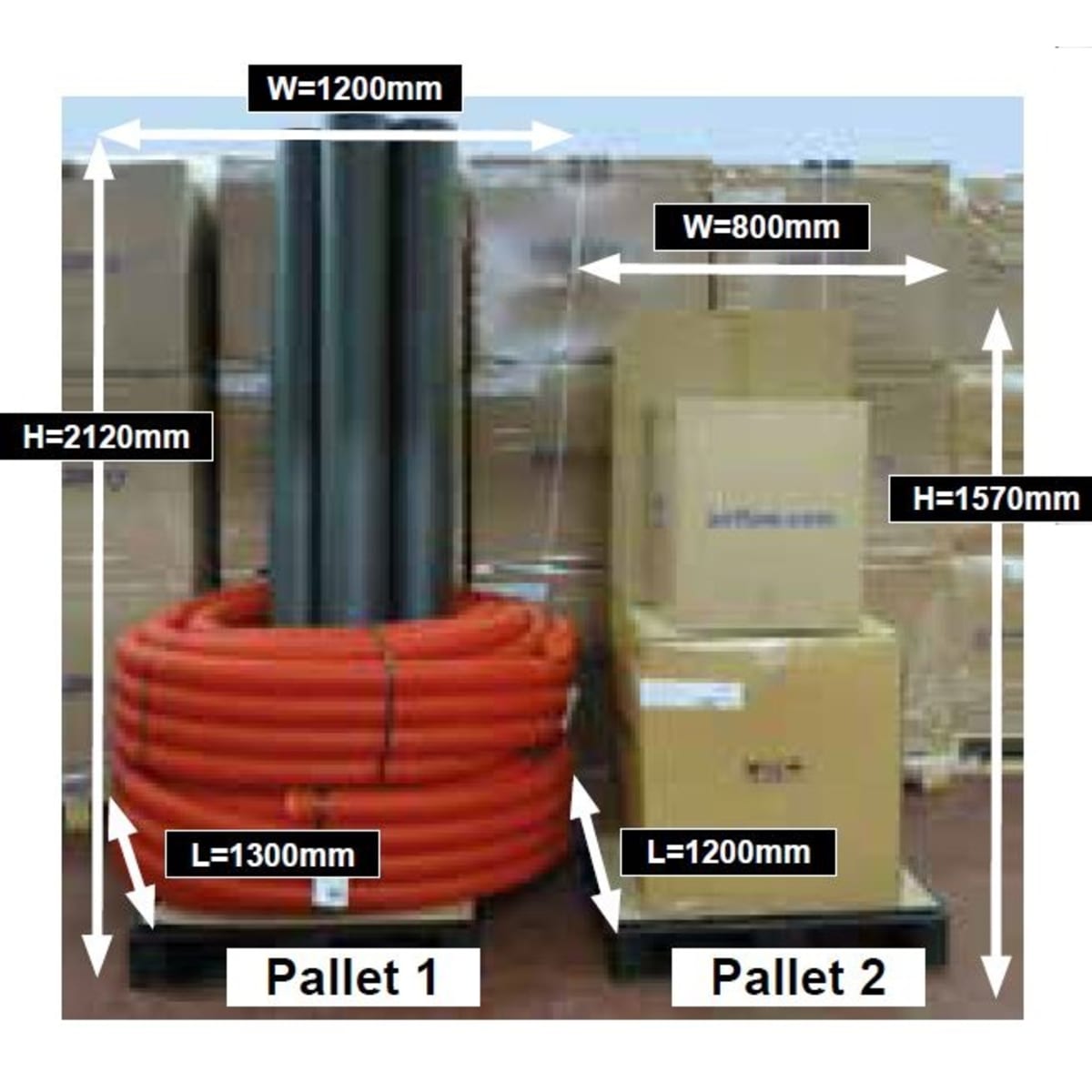

Product Width 2000  mm
Product Weight 138  kg
Product Height 2120  mm
Product Length 2500  mm
Product Depth 530  mm
Diameter 160  mm
Volume 4.5  m3
Cable Length 3  m
