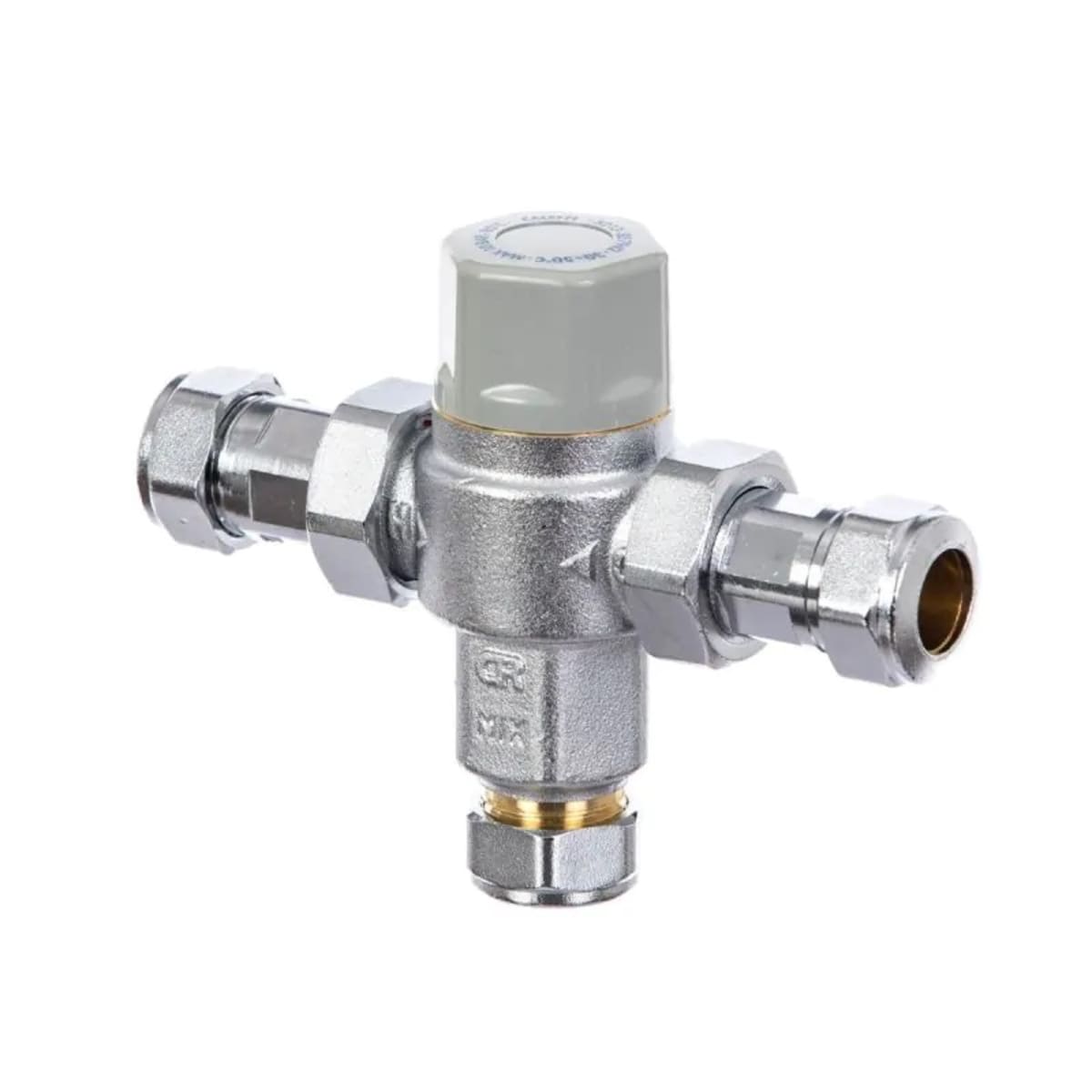

Altecnic Thermostatic Mixing Valve 22mm
SKU: PA100824
The Merchant Range Of Fail Safe Thermostatic Mixing Valves Have Been Designed And Manufactured To Meet The Requirements Of Bs 7942:2000 And The National Health Service Model Engineering Specification D08 For Use In Healthcare Premises, Hospitals, Care Homes, And Schools. The Elderly, Young Children And The Disabled Are At Particular Risk Of Life Threatening Scalds Due To A Potential Lack Of Mobility, Skin Sensitivity Or The Ability To Communicate With Their Carer. The Valve Has Been Independently Tested And Approved As A Type 3 Valve Under The Tmv3 Scheme. The Valve Also Meet The Requirements Of Bs En 1111: 2017 And Bs En 1287: 2017 And The Tmv2 Type Scheme. The Valves Have Been Independently Tested And Approved As A Type 2 Valve Under The Tmv2 Scheme By The Wrc - Nsf. Merchant Tmv2 Thermostatic Mixing Valves Are Suitable For Use In Domestic Housing And Commercial Building For Single User Outlets Including Wash Basins, Showers, Baths And Bidets But Are Also Suitable For Multiple Outlet Use.
Features & benefits
- Compliance with Part G of the Building Regulations
- TMV3 & TMV2 certified
- Approved to EN1287:2017 and EN1111:2017
- Max pressure: 10 bar
- Max incoming temperature: 85°C
- Pressure ratio (H/C or C/H): 5:1
- 5 Year Warranty
- WRAS Approved
IDPA100824
Electrics & Plumbing > Heating > Radiator Valves > Altecnic Thermostatic Mixing Valve 22mm
https://www.jewson.co.uk/p/altecnic-thermostatic-mixing-valve-22mm-PA100824
The Merchant Range Of Fail Safe Thermostatic Mixing Valves Have Been Designed And Manufactured To Meet The Requirements Of Bs 7942:2000 And The National Health Service Model Engineering Specification D08 For Use In Healthcare Premises, Hospitals, Care Homes, And Schools. The Elderly, Young Children And The Disabled Are At Particular Risk Of Life Threatening Scalds Due To A Potential Lack Of Mobility, Skin Sensitivity Or The Ability To Communicate With Their Carer. The Valve Has Been Independently Tested And Approved As A Type 3 Valve Under The Tmv3 Scheme. The Valve Also Meet The Requirements Of Bs En 1111: 2017 And Bs En 1287: 2017 And The Tmv2 Type Scheme. The Valves Have Been Independently Tested And Approved As A Type 2 Valve Under The Tmv2 Scheme By The Wrc - Nsf. Merchant Tmv2 Thermostatic Mixing Valves Are Suitable For Use In Domestic Housing And Commercial Building For Single User Outlets Including Wash Basins, Showers, Baths And Bidets But Are Also Suitable For Multiple Outlet Use.
Features & benefits
- Compliance with Part G of the Building Regulations
- TMV3 & TMV2 certified
- Approved to EN1287:2017 and EN1111:2017
- Max pressure: 10 bar
- Max incoming temperature: 85°C
- Pressure ratio (H/C or C/H): 5:1
- 5 Year Warranty
- WRAS Approved
Specifications
| Product Name | Altecnic Thermostatic Mixing Valve 22mm |
| Brand | Altecnic |
| Product Type | Thermostatic Mixing Valves |
| Manufacturer Name | Altecnic |
| Manufacturer Part Number | CA-100824 |
| EAN | 8016615319583 |
| Warranty Period | 5 years |
| Materials | Material - Optional (max 100 chars) |
| Commercial Or Domestic Use | Both |
| Pack Quantity | 1 |
| Applicable Standards | TMV 2/3 Approved |
| Product Width | 92 mm |
| Product Weight | 0.794 kg |
| Product Height | 76 mm |
| Product Length | 110 mm |
