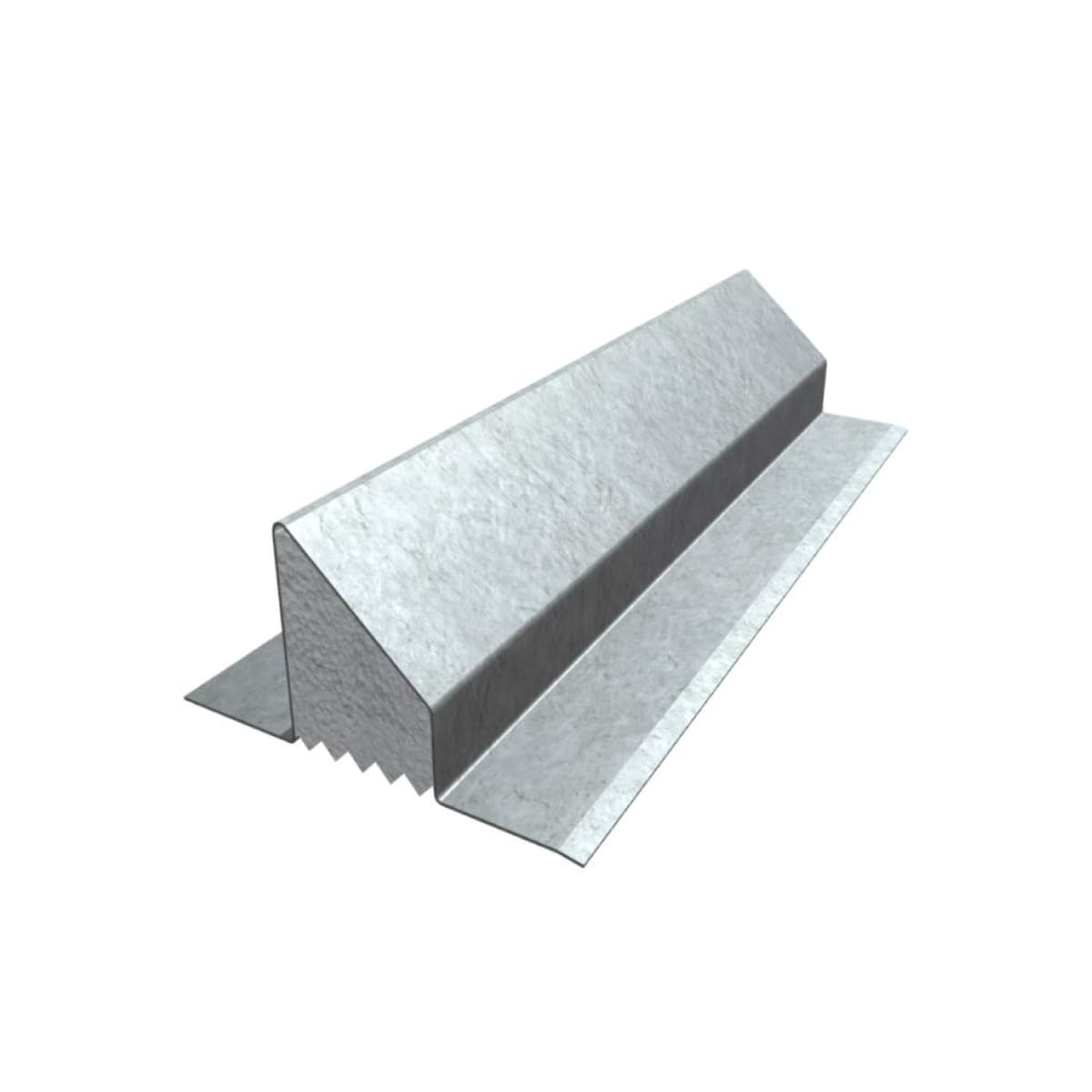

Birtley CB110 Supergalv Cavity Wall Steel Lintel 900 x 132 x 300mm
SKU: BLCB1109
Birtley Standard Duty Supergalv Cavity Wall Lintel 900 x 132 x 300mm (L x H x W) is manufactured from strutural grade steel accordance to BS EN10025-2:2004. The insulation is of expanded polystyrene that comes with a BREEAM rating A+. Has superior corrosion protection due to the supergalv coating over the hot dip galvanisation. This feature increases the life expectancy and the durability of the lintel. Load bearing capacity is at 43kN/m with a defection of 1mm harmonised to BS EN 845‐2:2013.
Features & benefits
- Manufactured from strutural grade steels: S275JR/S355JR to EN10025-2:2004
- Galvanized after fabrication to BS EN 1461:2009 for unrivalled corrosion resistance
- All external cavity wall lintels are insulated with expanded polystyrene to BS EN 13163 to reduce thermal bridging
- Plaster key to inner leaf
- Rainwater drip feature to outer leaf
IDBLCB1109
Building Materials > Lintels > Steel Lintels > Birtley CB110 Supergalv Cavity Wall Steel Lintel 900 x 132 x 300mm
https://www.jewson.co.uk/p/birtley-standard-duty-supergalv-cavity-wall-lintel-900-x-132mm-BLCB1109
Birtley Standard Duty Supergalv Cavity Wall Lintel 900 x 132 x 300mm (L x H x W) is manufactured from strutural grade steel accordance to BS EN10025-2:2004. The insulation is of expanded polystyrene that comes with a BREEAM rating A+. Has superior corrosion protection due to the supergalv coating over the hot dip galvanisation. This feature increases the life expectancy and the durability of the lintel. Load bearing capacity is at 43kN/m with a defection of 1mm harmonised to BS EN 845‐2:2013.
Features & benefits
- Manufactured from strutural grade steels: S275JR/S355JR to EN10025-2:2004
- Galvanized after fabrication to BS EN 1461:2009 for unrivalled corrosion resistance
- All external cavity wall lintels are insulated with expanded polystyrene to BS EN 13163 to reduce thermal bridging
- Plaster key to inner leaf
- Rainwater drip feature to outer leaf
Specifications
| Product Name | Birtley CB110 Supergalv Cavity Wall Steel Lintel 900 x 132 x 300mm |
| Brand | Birtley |
| Manufacturer Name | Birtley |
| Manufacturer Part Number | CB110 |
| Compliance Approvals | CE Marked |
| Materials | Steel |
| Range | Cavity Wall Steel Lintel |
| Colour | Chrome |
| Application | Interior/External |
| Pack Quantity | 1 |
| Country Of Origin | United Kingdom |
| Finish | Galvanised |
| Product Width | 300 mm |
| Product Weight | 8.3 kg |
| Product Height | 132 mm |
| Product Length | 900 mm |
