Catnic Cougar Cavity Wall Lintel 2100mm Black

IDLNCNE159 Building Materials > Lintels > Steel Lintels > Catnic Cougar Cavity Wall Lintel 2100mm Black
Trade Sign in or apply for trade prices
£ 150
.14  inc VAT
£71.50 per metre

Qty Quantity

Click & Deliver

Within 2 working days if ordered by 12pm

Click & Collect

Collect in 1 hour

Please log in/register  to save items.

Product information

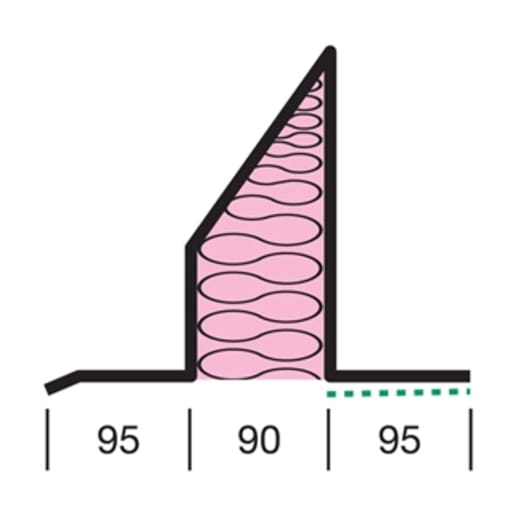

The Catnic Cougar Cavity Wall Lintel measures 2100 x 160 x 283mm (L x H x W). The product is BBA approved under the agreement certificate no. 91/2638. The CG, CH and CX ranges are formed from galvanised steel, then powder coated for weather and abrasion resistance. The lintel is provided with integral plaster key with staggered slots applied to the inner flange and underside of insulation. The product supports the uniform distribution of masonry loads, timber floors and roof loads. The product is BBA approved under the agreement certificate no. 91/2638 and graded 304S15 to BS EN 10088-2-1.4301.

Features & benefits
  • Duplex Corrosion Protection System: Manufactured from hot-dipped Galvanised steel to BS EN 10346:2009 plus coating tupe Z275. A coating of thermal setting polyester powder is then applied by electrostatic process, further protecting the lintel.
  • Integrated Plaster Key that avoid the hazards of working with a mesh key
  • Supplied with CFC and HCFC free insulation maximising their thermal efficiency and compliance with part L
  • BSI registered with quality management systems in accordance with BS EN ISO 9001: 2015
  • Easy to use with open back cavity wall lintels without base plates
Product Name Catnic Cougar Cavity Wall Lintel 2100mm Black
Brand Catnic
Manufacturer Name Tata Steel
Manufacturer Part Number CG90/1002100
EAN 5023545102065
Compliance Approvals BBA Certified
Warranty Period 60  years
Materials Galvanised Steel
Commercial Or Domestic Use Both
Range Cavity Wall
Colour Black
Application External
Pack Quantity 1
Country Of Origin United Kingdom
Finish Galvanised Powder Coated
Recyclable Yes
Product Width 283  mm
Product Weight 8.3  kg/m
Product Height 160  mm
Product Length 2100  mm
Thickness 2.5  mm
Moisture Resistant Yes
Thermal Conductivity 50  W/m2K
Cavity Width 105  mm
