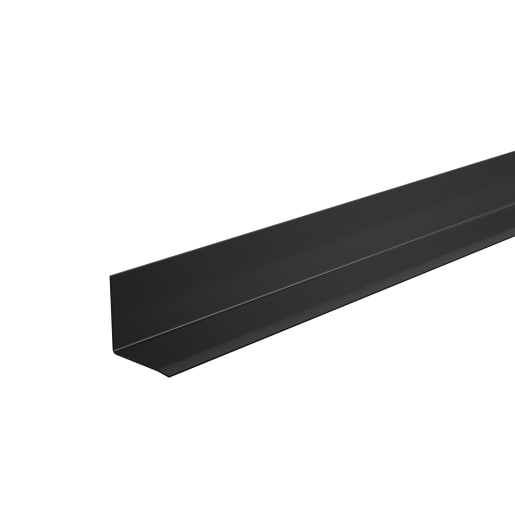

Catnic External Solid Wall Single Leaf Angle Lintel 1200 x 91mm BlackSKU: LNCANG12
The Catnic External Solid Wall Single Leaf Angle Lintel measuring 1200 x 91mm (L x W) is designed as a structural horizontal block that spans the space or opening between two vertical supports. The versatile product available in silver colour, is made from galvanised steel which is reliable and durable. Equal angle lintel has legs of the same length and is most often used for balconies, stairs, concrete supports, and platforms.
- Duplex Corrosion Protection System: Manufactured from hot-dipped Galvanised steel to BS EN 10346:2009 plus coating tupe Z275. A coating of thermal setting polyester powder is then applied by electrostatic process, further protecting the lintel.
- Hot-Dipped Galvanised sheet steel coil to BS EN10346:2009 and Z275. Finished with black polyester powder coating.
- Designed to accommodate the requirements of all thin joint wall construction
- BSI registered with quality management systems in accordance with BS EN ISO 9001: 2015
|Product Name||Catnic External Solid Wall Single Leaf Angle Lintel 1200 x 91mm Black|
|Manufacturer Name||Tata Steel|
|Manufacturer Part Number||ANG1200|
|Compliance Approvals||BBA Certified|
|Warranty Period||60 years|
|Commercial Or Domestic Use||Both|
|Country Of Origin||United Kingdom|
|Finish||Galvanised Powder Coated|

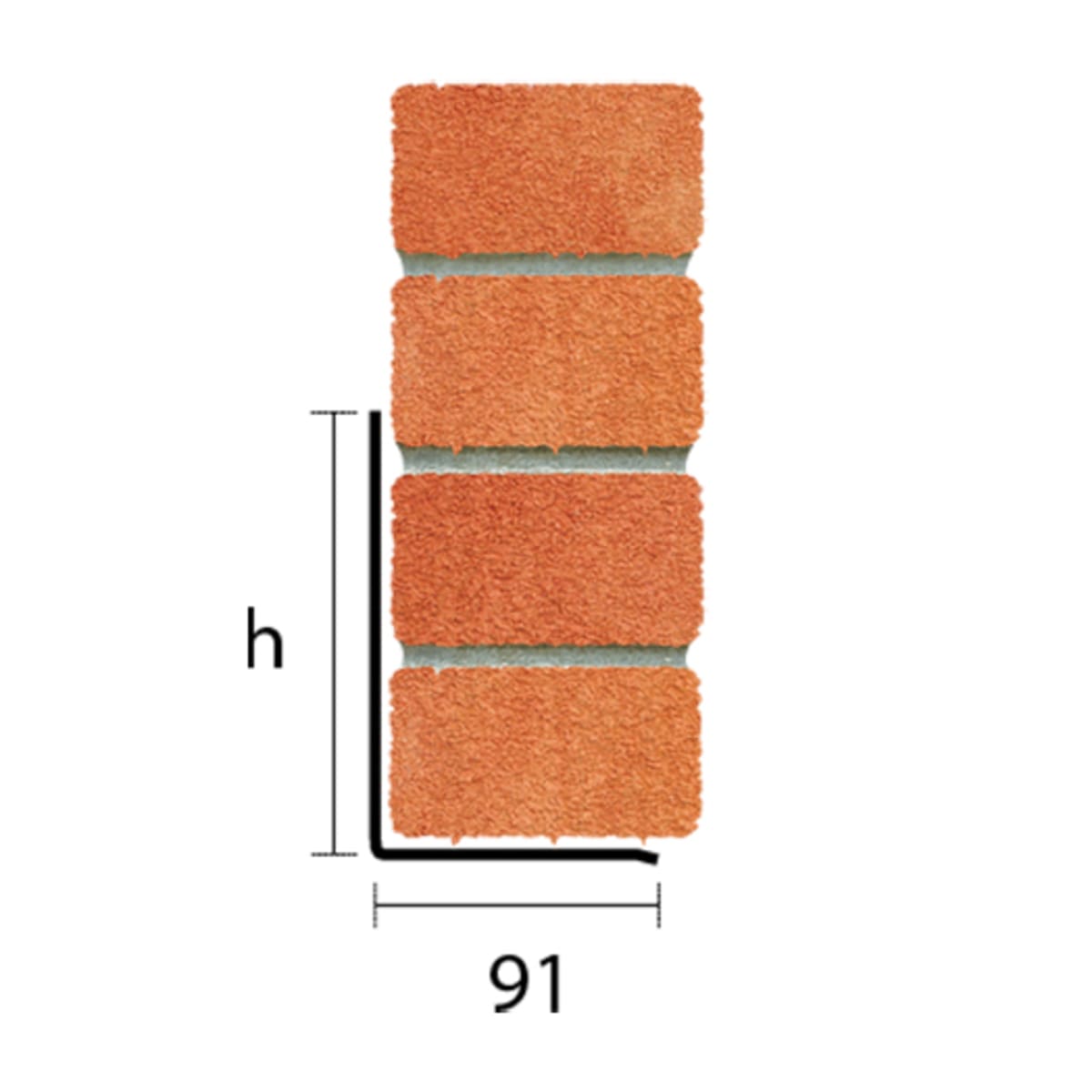

|Product Width||91 mm|
|Product Weight||2.7 kg/m|
|Product Height||88 mm|
|Product Length||1200 mm|
|Thermal Conductivity||50 W/m2K|
|Cavity Width||105 mm|
