Catnic Cavity Wall Lintel 1500mm
SKU: CG151500

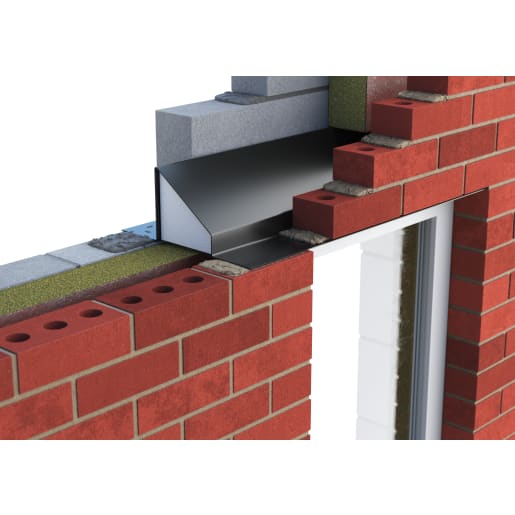

Steel lintel for use in 150mm standard duty masonry cavity wall construction, designed to support typical masonry, timber floor and roof loads found in most buildings and suitable for fairfaced inner leaf masonry. Open back profile allows masonry to be built up continuously on both outer and inner leaf. Manufactured from galvanised steel, supplied fully insulated, with integral plaster key and Catnic's signature black powder coating
Features & benefits
- Duplex Corrosion Protection
- Integral Plaster Key
- Built-In DPC
- Integral Insulation
- The SWL (safe working load) is based on the total UDL (uniform distributed load) over maximum span using 150mm end bearings.
- Standard lengths are available in increments of 150mm at lengths up to 3000mm, 300mm at lengths from 3000mm to 3600mm.

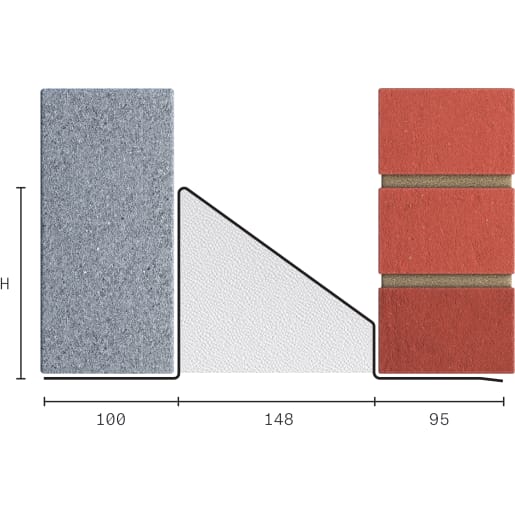

- Cavity 150-165mm
IDCG151500
Building Materials > Lintels > Steel Lintels > Catnic Cavity Wall Lintel 1500mm
https://www.jewson.co.uk/p/catnic-standard-duty-cavity-wall-lintel-1500-x-140-x-343mm-galvanised-CG151500
Steel lintel for use in 150mm standard duty masonry cavity wall construction, designed to support typical masonry, timber floor and roof loads found in most buildings and suitable for fairfaced inner leaf masonry. Open back profile allows masonry to be built up continuously on both outer and inner leaf. Manufactured from galvanised steel, supplied fully insulated, with integral plaster key and Catnic's signature black powder coating
Features & benefits
- Duplex Corrosion Protection
- Integral Plaster Key
- Built-In DPC
- Integral Insulation
- The SWL (safe working load) is based on the total UDL (uniform distributed load) over maximum span using 150mm end bearings.
- Standard lengths are available in increments of 150mm at lengths up to 3000mm, 300mm at lengths from 3000mm to 3600mm.
- Cavity 150-165mm
| Product Name | Catnic Cavity Wall Lintel 1500mm |
| Brand | Catnic |
| Product Type | Cavity Wall Lintels |
| Manufacturer Name | Catnic |
| Manufacturer Part Number | CG150/1001500 |
| EAN | 5017586465418 |
| Materials | Galvanised Steel |
| Commercial Or Domestic Use | Both |
| Model Number | CG150/100 |
| Colour | Black |
| Pack Quantity | 1 |
| Country Of Origin | UK |
| Finish | Powder Coated |
| Recyclable | Yes |
| Product Width | 343 mm |
| Product Weight | 11.12 kg |
| Product Height | 115 mm |
| Product Length | 1500 mm |
