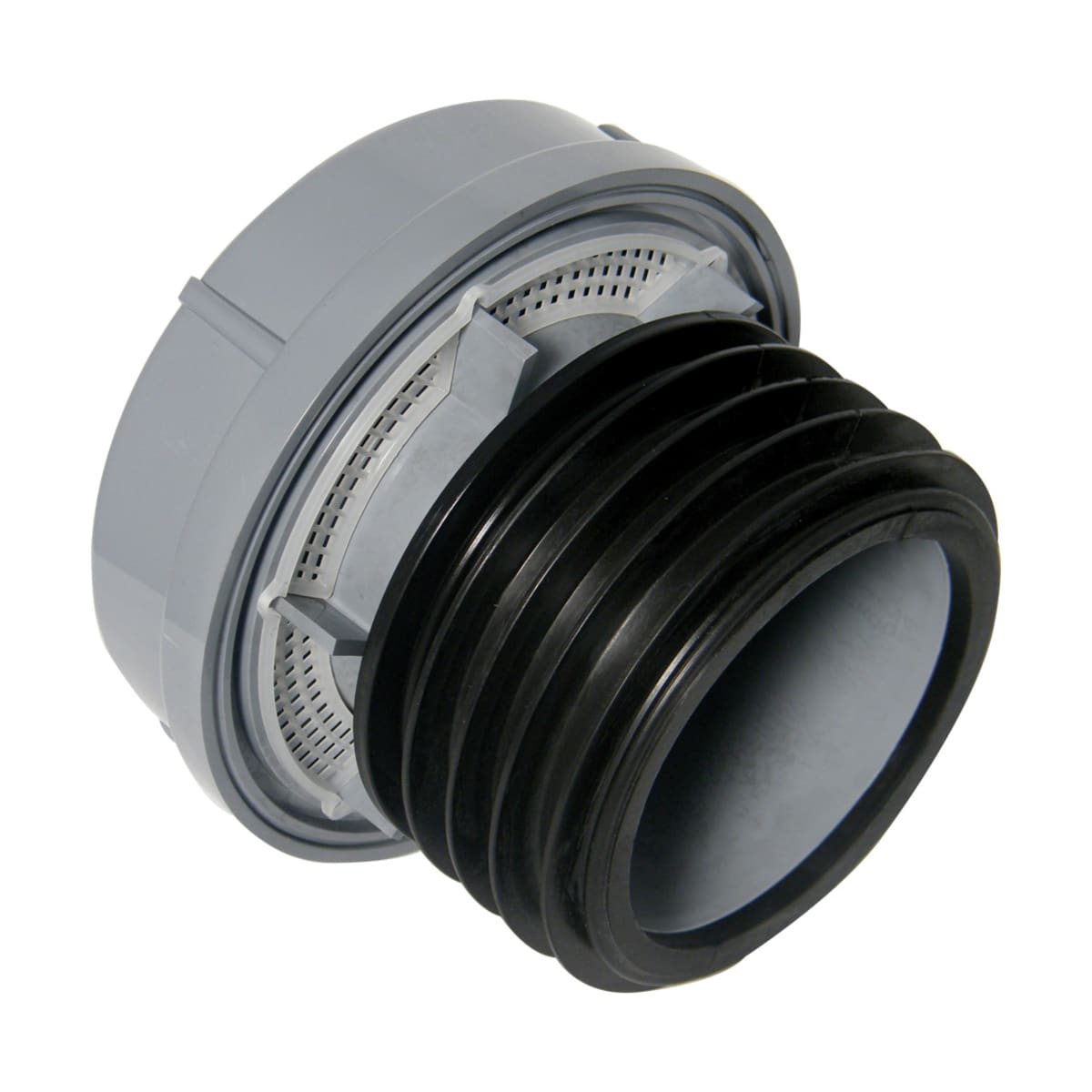

FloPlast AX110G 110mm Soil External Air Admittance Valve Grey
SKU: FP298206
The FloPlast Push-Fit Air Admittance Valve allows a soil stack fitted with an external air admittance valve to terminate within three metres of a window opening. This allows the pipe to terminate at the same height as if it were installed internally, 200mm minimum above the highest wet entry point to the soil vent pipe. The use of an external air admittance valve eliminates the need for the soil stack to extend over the roof line saving on materials and time.
Features & benefits
- Allow the free entry of air into the sanitary pipework system without the escape of foul gasses into the building.
- Saves the need to penetrate the outer roof shell.
- Prevents the loss of water from trap seals due to induced siphonage when installed on pipework conforming to BS EN 12056.
- Acts as an early warning indicator for potential drainage blockages.
- A1 approved. It can be installed below the flood level of connected appliances.
IDFP298206
Electrics & Plumbing > Drainage > Below Ground Drainage > FloPlast AX110G 110mm Soil External Air Admittance Valve Grey
https://www.jewson.co.uk/p/floplast-ax110g-110mm-soil-external-air-admittance-valve-grey-FP298206
The FloPlast Push-Fit Air Admittance Valve allows a soil stack fitted with an external air admittance valve to terminate within three metres of a window opening. This allows the pipe to terminate at the same height as if it were installed internally, 200mm minimum above the highest wet entry point to the soil vent pipe. The use of an external air admittance valve eliminates the need for the soil stack to extend over the roof line saving on materials and time.
Features & benefits
- Allow the free entry of air into the sanitary pipework system without the escape of foul gasses into the building.
- Saves the need to penetrate the outer roof shell.
- Prevents the loss of water from trap seals due to induced siphonage when installed on pipework conforming to BS EN 12056.
- Acts as an early warning indicator for potential drainage blockages.
- A1 approved. It can be installed below the flood level of connected appliances.
Specifications
| Product Name | FloPlast AX110G 110mm Soil External Air Admittance Valve Grey |
| Brand | FloPlast |
| Product Type | Soil & Waste |
| Manufacturer Name | FloPlast |
| Manufacturer Part Number | AX110G |
| EAN | 5055149924811 |
| Warranty Period | 1 years |
| Materials | PVC |
| Range | Air Admittance Valves |
| Colour | Grey |
| Country Of Origin | United Kingdom |
| Product Width | 153 mm |
| Product Weight | 0.596 kg |
| Product Height | 140 mm |
| Product Length | 155 mm |
