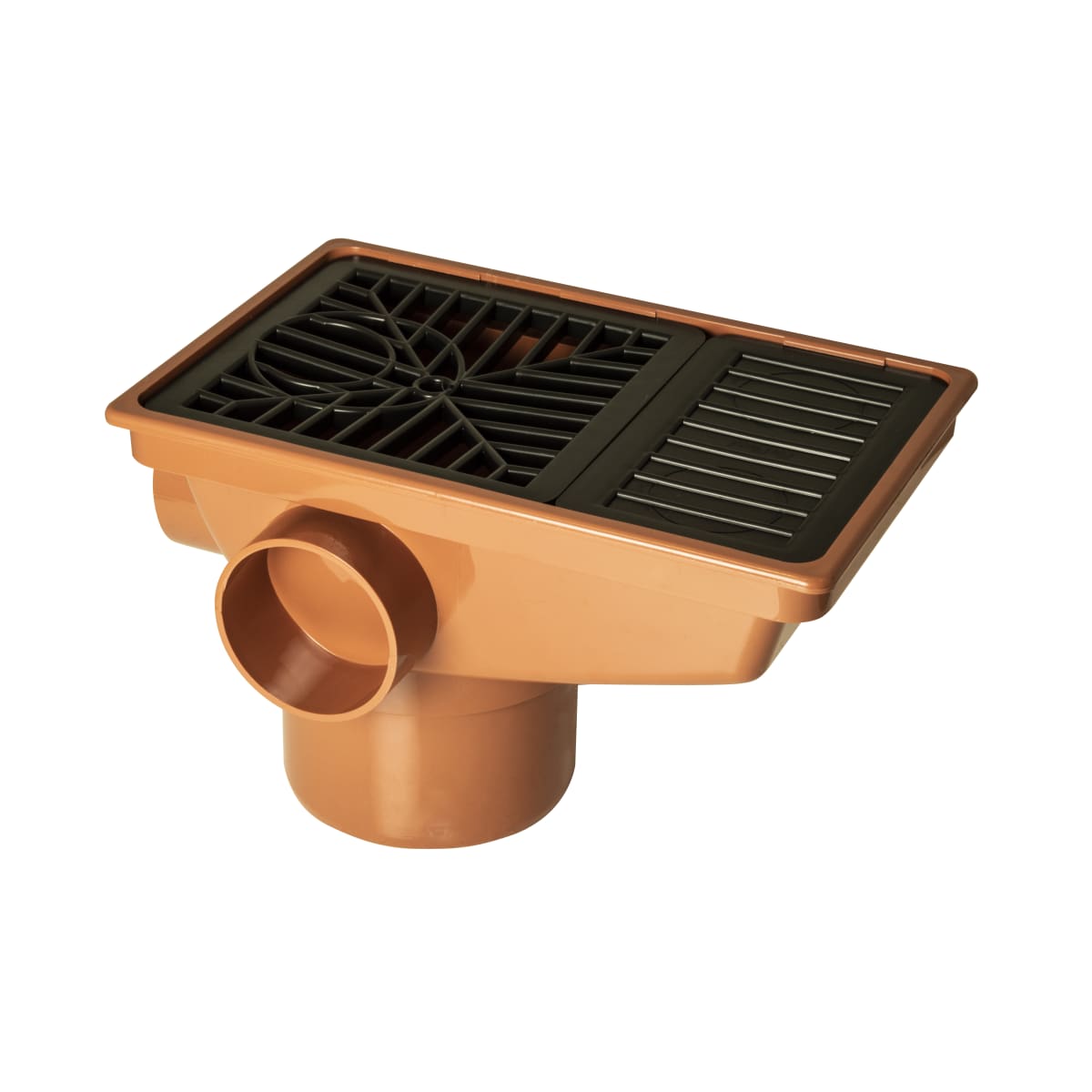

FloPlast D506 Underground Universal Rectangular Hopper with PP Grid
SKU: FP288163
The FloPlast Rectangular Drain Inlet Hopper is generally used in conjunction with P traps.The hopper head is connected via the spigot which push-fits into the P Trap. The rectangular hopper has two closed side bosses which when drilled out using a 50-57mm hole cutter and boss adaptors are fitted will allow 32mm, 40mm and 50mm waste pipes to be connected to the drainage system. More commonly waste pipes/downpipes are connected above ground via the grate which can be cut to suit the pipes.
Features & benefits
- Suitable for use in gravity drainage and sewerage installations, up to depths of 10 metres.
- Compatible with 110mm above ground drainage systems.
- Can withstand continuous temperatures up to 76°C, or up to 100°C for 2 minutes intermittently.
- Manufactured from uPVC to BS EN 1401-1 and BS EN 13476-2.
IDFP288163
Electrics & Plumbing > Drainage > Below Ground Drainage > FloPlast D506 Underground Universal Rectangular Hopper with PP Grid
https://www.jewson.co.uk/p/floplast-d506-underground-universal-rectangular-hopper-with-pp-grid-FP288163
The FloPlast Rectangular Drain Inlet Hopper is generally used in conjunction with P traps.The hopper head is connected via the spigot which push-fits into the P Trap. The rectangular hopper has two closed side bosses which when drilled out using a 50-57mm hole cutter and boss adaptors are fitted will allow 32mm, 40mm and 50mm waste pipes to be connected to the drainage system. More commonly waste pipes/downpipes are connected above ground via the grate which can be cut to suit the pipes.
Features & benefits
- Suitable for use in gravity drainage and sewerage installations, up to depths of 10 metres.
- Compatible with 110mm above ground drainage systems.
- Can withstand continuous temperatures up to 76°C, or up to 100°C for 2 minutes intermittently.
- Manufactured from uPVC to BS EN 1401-1 and BS EN 13476-2.
Specifications
| Product Name | FloPlast D506 Underground Universal Rectangular Hopper with PP Grid |
| Brand | FloPlast |
| Product Type | Underground Drainage |
| Manufacturer Name | FloPlast |
| Manufacturer Part Number | D506 |
| EAN | 5055149907470 |
| Warranty Period | 1 years |
| Materials | PVC-U |
| Range | 110mm Pipe and Fittings |
| Colour | Terracotta |
| Country Of Origin | United Kingdom |
| Product Width | 181 mm |
| Product Weight | 0.814 kg |
| Product Height | 175 mm |
| Product Length | 272 mm |
