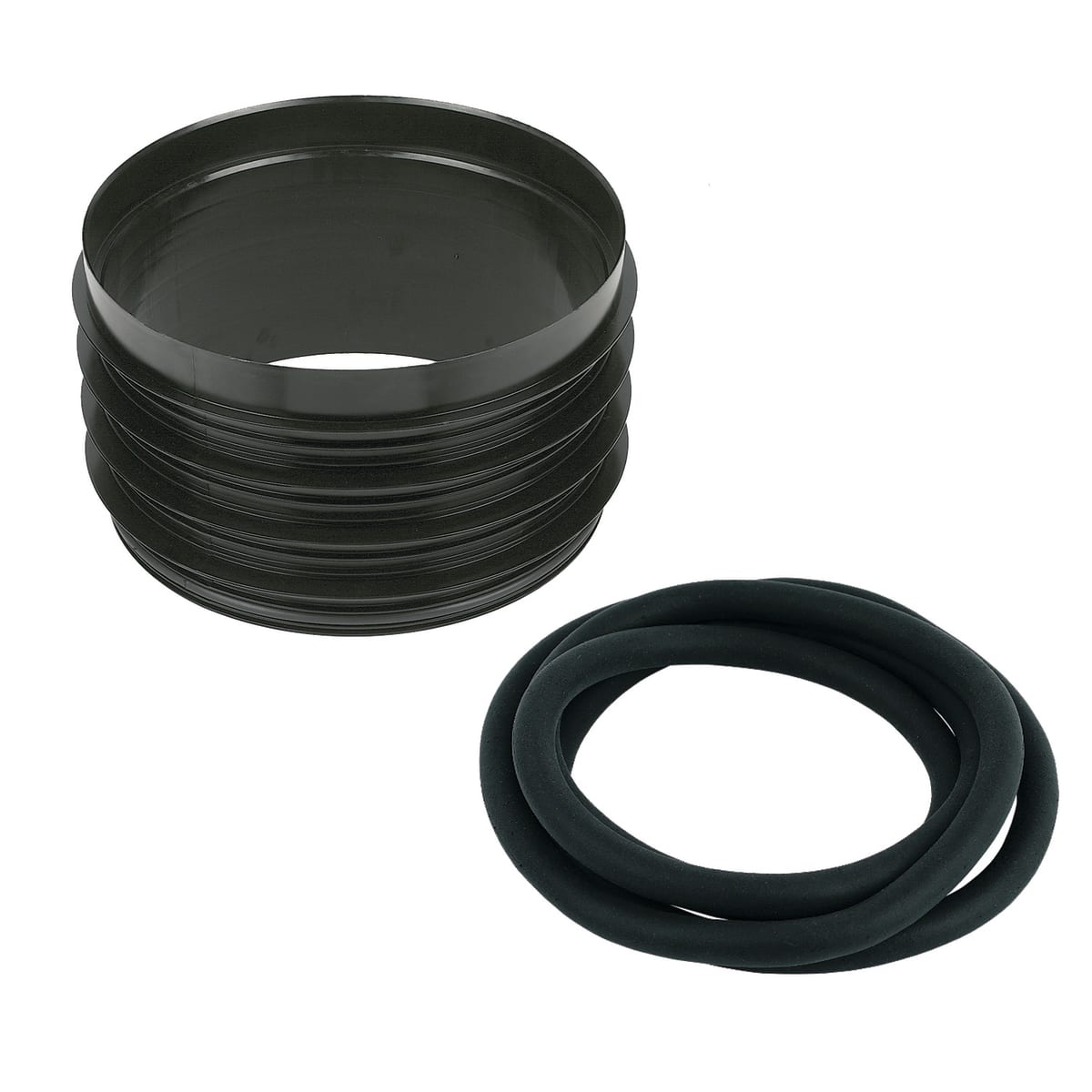

FloPlast D916 Underground Inspection Chamber Sealing Ring and Riser
SKU: FP288361
The FloPlast Large Inspection Chamber Riser allows you to extended the height of a large inspection by 235mm to a maximum height of 1200mm with the standard frame and cover and upto 3000mm using a 350mm reduced access frame and cover. The riser can also be cut down to heights of 65mm, 115mm and 117mm.
Features & benefits
- Can be used as an alternative to traditional manholes.
- 450mm Large Inspection Chambers can be installed in depths up to 3 metres.
- Flexible inlets allow for 10° movement in any direction for when the connecting pipes are not aligned.
- Manufactured from Polypropylene to BS EN 1401-1, BS EN 124, and BS EN 13598-1.
IDFP288361
Electrics & Plumbing > Drainage > Below Ground Drainage > FloPlast D916 Underground Inspection Chamber Sealing Ring and Riser
https://www.jewson.co.uk/p/floplast-d916-underground-inspection-chamber-sealing-ring-and-riser-FP288361
The FloPlast Large Inspection Chamber Riser allows you to extended the height of a large inspection by 235mm to a maximum height of 1200mm with the standard frame and cover and upto 3000mm using a 350mm reduced access frame and cover. The riser can also be cut down to heights of 65mm, 115mm and 117mm.
Features & benefits
- Can be used as an alternative to traditional manholes.
- 450mm Large Inspection Chambers can be installed in depths up to 3 metres.
- Flexible inlets allow for 10° movement in any direction for when the connecting pipes are not aligned.
- Manufactured from Polypropylene to BS EN 1401-1, BS EN 124, and BS EN 13598-1.
Specifications
| Product Name | FloPlast D916 Underground Inspection Chamber Sealing Ring and Riser |
| Brand | FloPlast |
| Product Type | Underground Drainage |
| Manufacturer Name | FloPlast |
| Manufacturer Part Number | D916 |
| EAN | 5055149944192 |
| Warranty Period | 1 years |
| Materials | EPDM |
| Range | 110mm Pipe and Fittings |
| Colour | Black |
| Country Of Origin | United Kingdom |
| Product Width | 514 mm |
| Product Weight | 2.709 kg |
| Product Height | 290 mm |
| Product Length | 514 mm |
