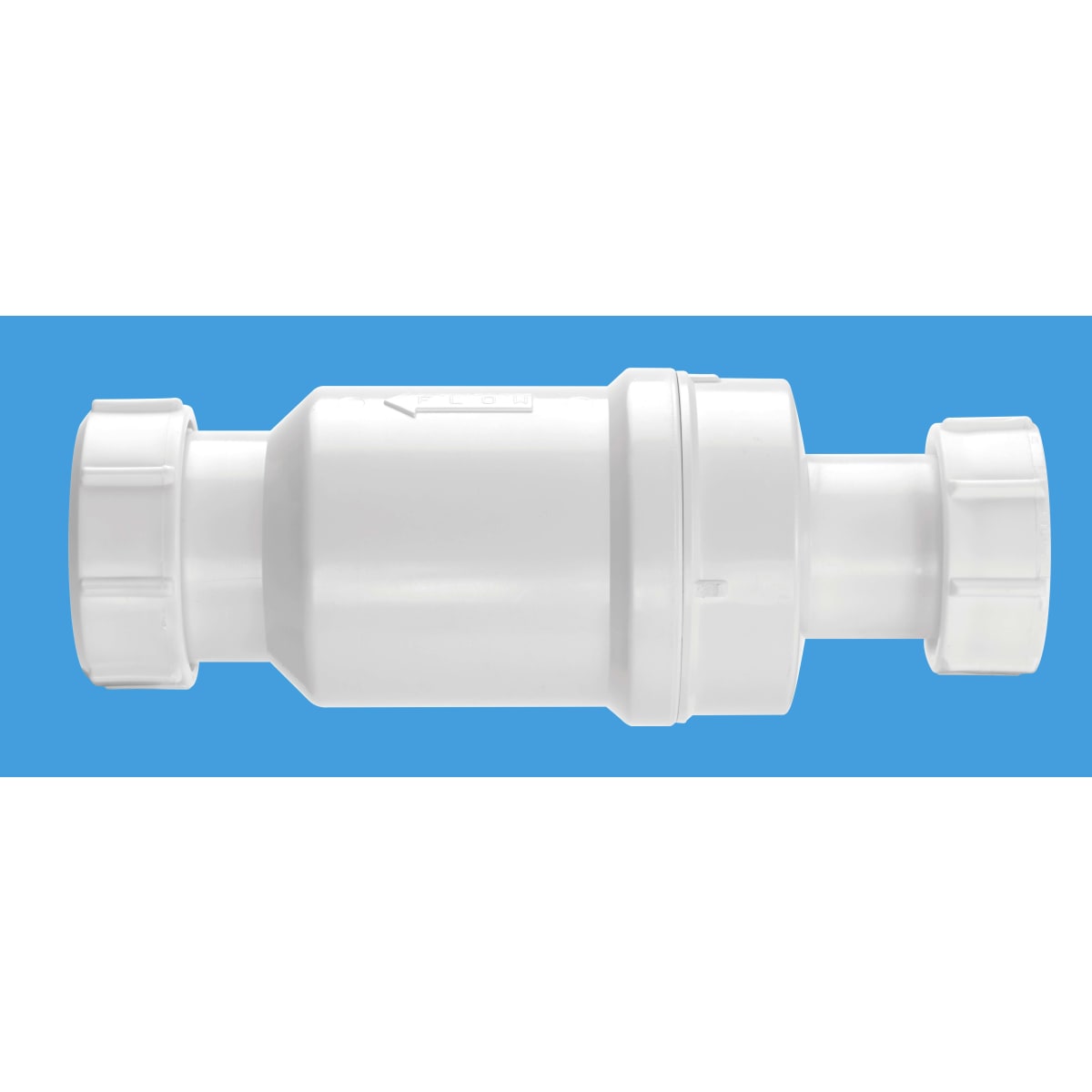

McAlpine 1½" Self Closing Waste Valve - Loose Nut x Compression
SKU: PMVALVE2
McAlpine 1½" Self Closing Waste Valve can be fitted in installation where a non-return valve can be of benefit to the plumbing installation. It can be fitted in horizontal or vertical position. Its membrane opens under water pressure to allow discharge to flow freely and then closes to form a seal to prevent foul odour or sewer gas entering the building. There is no water seal so it can never dry out through evaporation or lack of use of an appliance as the membrane remains sealed. This product Not recommended for use with shower trays unless there is access for maintenance.
Features & benefits
- Available in 1¼" and 1½" sizes
- BSP female inlet nut x universal compression outlet
- Membrane opens under water pressure to allow discharge to flow freely and then closes to form a seal to prevent foul odour or sewer gas entering the building
- Can be fitted in horizontal or vertical position
- Can be fitted in installation where a non-return valve can be of benefit to the plumbing installation
- No water seal so it can never dry out through evaporation or lack of use of an appliance as the membrane remains sealed
- Not recommended for use with shower trays unless there is access for maintenance
- Patent Pending
IDPMVALVE2
Electrics & Plumbing > Drainage > Below Ground Drainage > McAlpine 1½" Self Closing Waste Valve - Loose Nut x Compression
https://www.jewson.co.uk/p/mcalpine-1-self-closing-waste-valve-loose-nut-x-compression-PMVALVE2
McAlpine 1½" Self Closing Waste Valve can be fitted in installation where a non-return valve can be of benefit to the plumbing installation. It can be fitted in horizontal or vertical position. Its membrane opens under water pressure to allow discharge to flow freely and then closes to form a seal to prevent foul odour or sewer gas entering the building. There is no water seal so it can never dry out through evaporation or lack of use of an appliance as the membrane remains sealed. This product Not recommended for use with shower trays unless there is access for maintenance.
Features & benefits
- Available in 1¼" and 1½" sizes
- BSP female inlet nut x universal compression outlet
- Membrane opens under water pressure to allow discharge to flow freely and then closes to form a seal to prevent foul odour or sewer gas entering the building
- Can be fitted in horizontal or vertical position
- Can be fitted in installation where a non-return valve can be of benefit to the plumbing installation
- No water seal so it can never dry out through evaporation or lack of use of an appliance as the membrane remains sealed
- Not recommended for use with shower trays unless there is access for maintenance
- Patent Pending
Specifications
| Product Name | McAlpine 1½" Self Closing Waste Valve - Loose Nut x Compression |
| Brand | McAlpine |
| Product Type | Self Closing Waste Valve |
| Manufacturer Name | McAlpine & Co Ltd |
| Manufacturer Part Number | MACVALVE-2 |
| EAN | 5036484077837 |
| Warranty Period | 12 months |
| Materials | ABS |
| Commercial Or Domestic Use | Both |
| Model Number | MACVALVE-2 |
| Colour Family | Whites |
| Colour | White |
| Application | Interior |
| Pack Quantity | 1 |
| Country Of Origin | United Kingdom |
| Recyclable | No |
| Renewable | No |
| Product Width | 68 mm |
| Product Weight | 0.219 kg |
| Product Height | 68 mm |
| Product Length | 175 mm |
| Volume | 8.0E-4 m3 |
| Jointing System | Compression |
| Connector Type | female |
