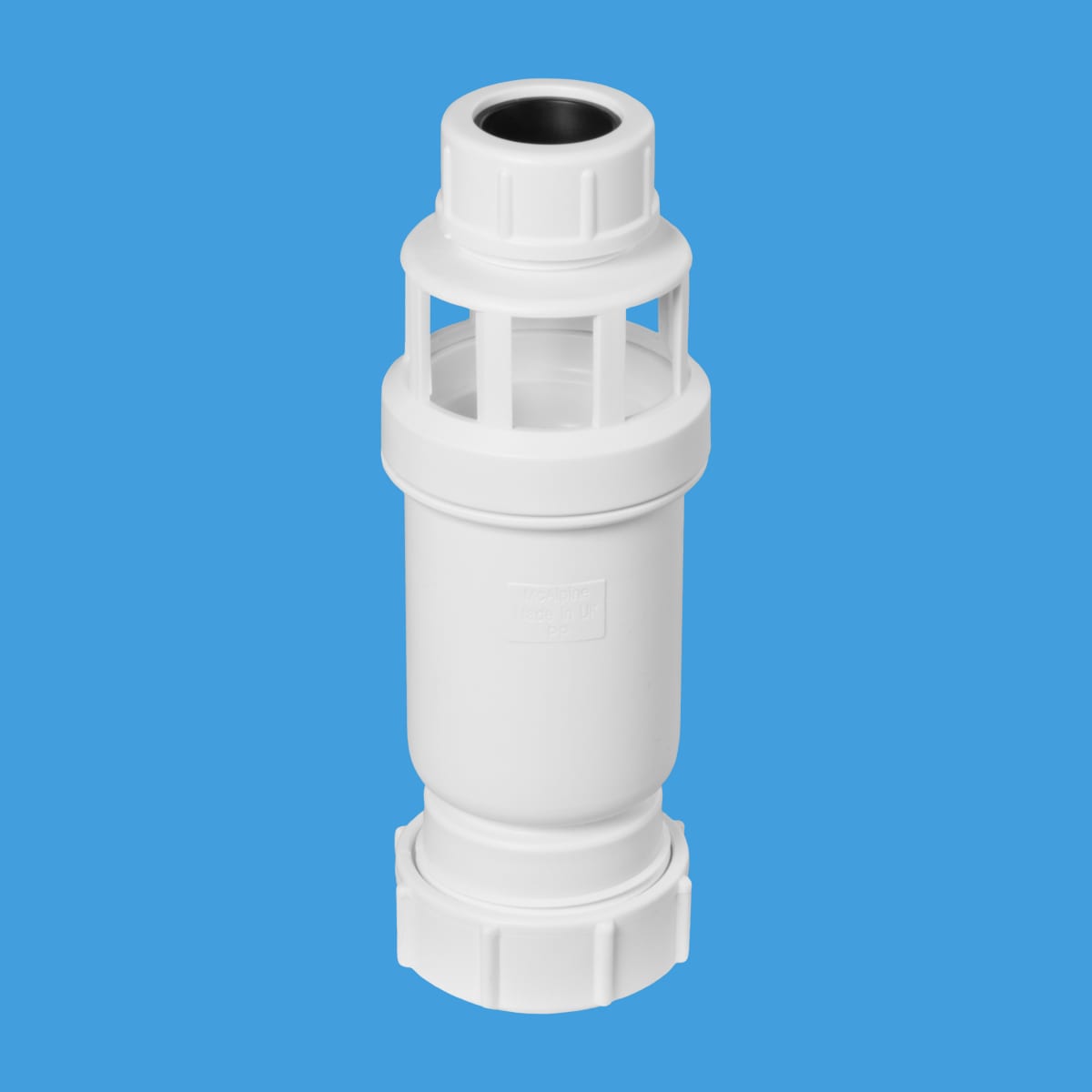

McAlpine Tundish with Self Closing Valve
SKU: PMACTUN2
McAlpine Tundish with self closing valve is the only combined tundish and non-return valve with a silicone membrane seal ensuring it will not be affected in hard water areas. The membrane seal has no spring mechanism and shall not be affected in hard water areas and creates no resistance ensuring a smooth discharge flow from the PRV/TRV. The product is generally maintenance free. If required, the top tundish window can be removed from the Mactun body for inspection or cleaning when maintenance work is being carried out. Suitable for use on Cylinders, Boilers, Water Heaters, PRV Valves, Condensate and Air Conditioning Units
Features & benefits
- MACTUN incorporates a self closing membrane which opens to allow discharge to flow freely and then closes to form a seal. This prevents foul odour or sewer gas entering the building when installed into a waste or soil pipe.
- The membrane seal has no spring mechanism and shall not be affected in hard water areas.
- The membrane seal creates no resistance ensuring a smooth discharge flow from the PRV/TRV
- Temperature Rating 100°C
- The product is generally maintenance free. If required the top tundish window can be removed from the Mactun body for inspection or cleaning when maintenance work is being carried out.
- Suitable for use on Cylinders, Boilers, Water Heaters, PRV Valves, Condensate and Air Conditioning Units
- KIWA certified and WRAS approved
IDPMACTUN2
Electrics & Plumbing > Drainage > Below Ground Drainage > McAlpine Tundish with Self Closing Valve
https://www.jewson.co.uk/p/mcalpine-tundish-with-self-closing-valve-PMACTUN2
McAlpine Tundish with self closing valve is the only combined tundish and non-return valve with a silicone membrane seal ensuring it will not be affected in hard water areas. The membrane seal has no spring mechanism and shall not be affected in hard water areas and creates no resistance ensuring a smooth discharge flow from the PRV/TRV. The product is generally maintenance free. If required, the top tundish window can be removed from the Mactun body for inspection or cleaning when maintenance work is being carried out. Suitable for use on Cylinders, Boilers, Water Heaters, PRV Valves, Condensate and Air Conditioning Units
Features & benefits
- MACTUN incorporates a self closing membrane which opens to allow discharge to flow freely and then closes to form a seal. This prevents foul odour or sewer gas entering the building when installed into a waste or soil pipe.
- The membrane seal has no spring mechanism and shall not be affected in hard water areas.
- The membrane seal creates no resistance ensuring a smooth discharge flow from the PRV/TRV
- Temperature Rating 100°C
- The product is generally maintenance free. If required the top tundish window can be removed from the Mactun body for inspection or cleaning when maintenance work is being carried out.
- Suitable for use on Cylinders, Boilers, Water Heaters, PRV Valves, Condensate and Air Conditioning Units
- KIWA certified and WRAS approved
Specifications
| Product Name | McAlpine Tundish with Self Closing Valve |
| Brand | MACTUN |
| Product Type | Tundish |
| Manufacturer Name | McAlpine & Co Ltd |
| Manufacturer Part Number | MACTUN-2 |
| EAN | 5036484088734 |
| Warranty Period | 12 months |
| Materials | Polypropylene |
| Commercial Or Domestic Use | Both |
| Model Number | MACTUN-2 |
| Colour Family | Whites |
| Colour | White |
| Application | Interior |
| Pack Quantity | 1 |
| Country Of Origin | United Kingdom |
| Recyclable | No |
| Renewable | No |
| Product Width | 59 mm |
| Product Weight | 0.1094 kg |
| Product Height | 166 mm |
| Product Length | 59 mm |
| Volume | 6.0E-4 m3 |
| Jointing System | Compression |
| Connector Type | female |
