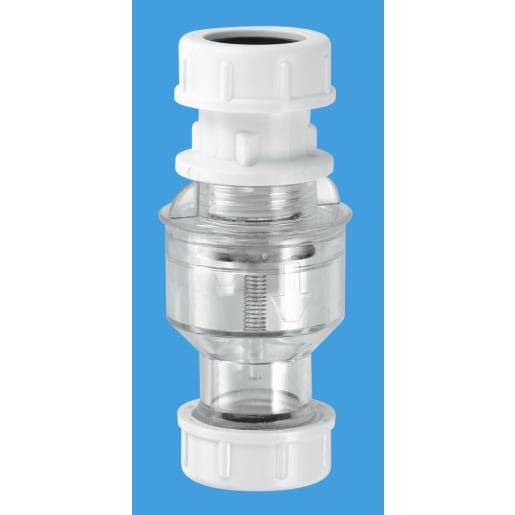

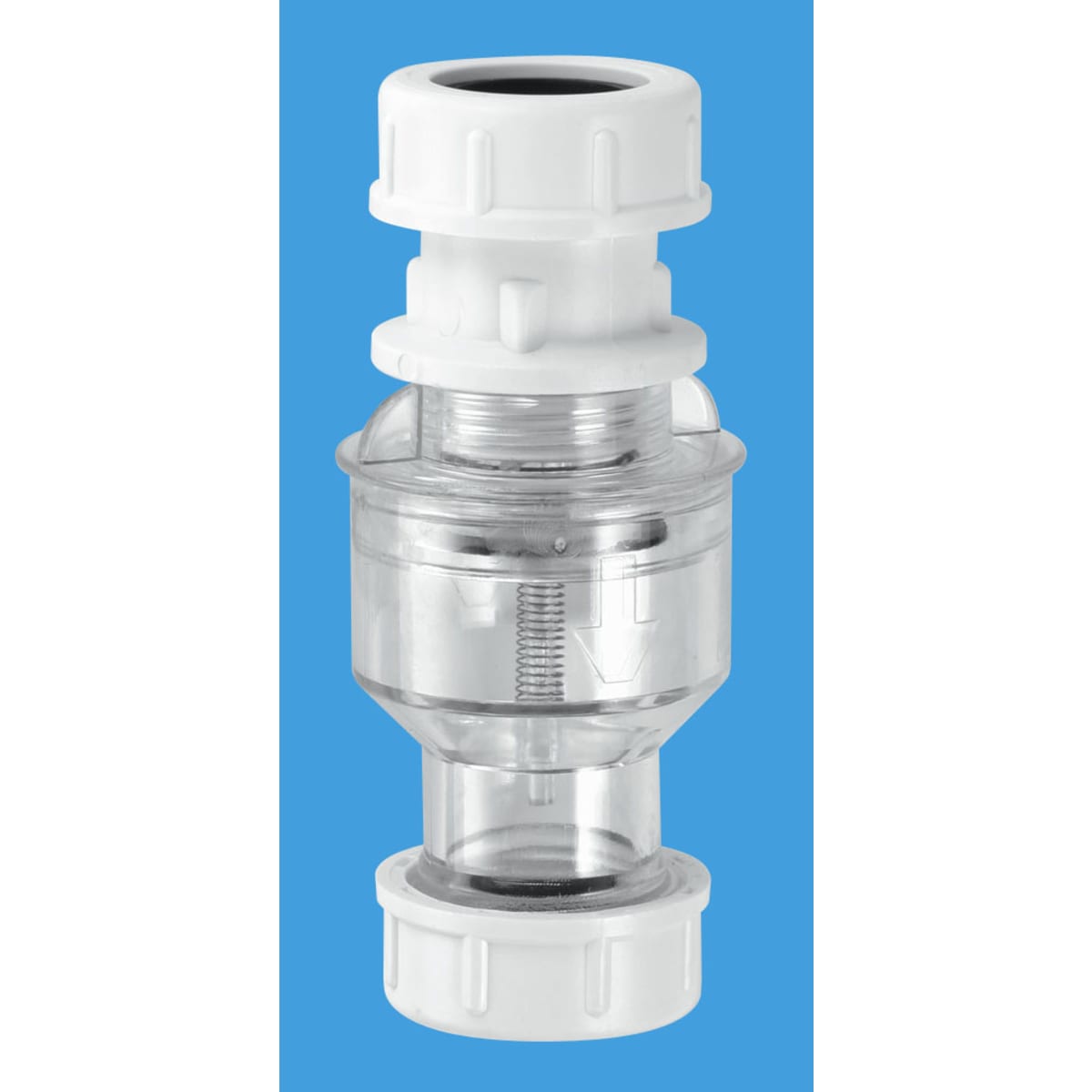

McAlpine Tunvalve Straight Through with 19/23mm Universal Connections Clear
SKU: BCF47591
McAlpine Clear Straight Through Tunvalve with non-return valve may be installed to take the discharge condensate from a boiler, air conditioning unit or cold water cistern when the discharge is being installed into a waste or soil pipe. The Valve will prevent foul odour entering the building but must be installed in the vertical position and placed where it is visible for inspection. Note: Not to be used to take the discharge from a Pressure Release Valve (PRV).
Features & benefits
- This non-return valve may be installed to take the discharge condensate from a boiler, air conditioning unit or cold water cistern when the discharge is being installed into a waste or soil pipe.
- The non-return valve will prevent foul odour entering the building
- Must be installed in the vertical position and placed where it is visible for inspection.
- Not to be used to take the discharge from a Pressure Release Valve (PRV)
IDBCF47591
Electrics & Plumbing > Drainage > Below Ground Drainage > McAlpine Tunvalve Straight Through with 19/23mm Universal Connections Clear
https://www.jewson.co.uk/p/mcalpine-tunvalve-straight-through-with-1923mm-universal-connections-clear-BCF47591
McAlpine Clear Straight Through Tunvalve with non-return valve may be installed to take the discharge condensate from a boiler, air conditioning unit or cold water cistern when the discharge is being installed into a waste or soil pipe. The Valve will prevent foul odour entering the building but must be installed in the vertical position and placed where it is visible for inspection. Note: Not to be used to take the discharge from a Pressure Release Valve (PRV).
Features & benefits
- This non-return valve may be installed to take the discharge condensate from a boiler, air conditioning unit or cold water cistern when the discharge is being installed into a waste or soil pipe.
- The non-return valve will prevent foul odour entering the building
- Must be installed in the vertical position and placed where it is visible for inspection.
- Not to be used to take the discharge from a Pressure Release Valve (PRV)
Specifications
| Product Name | McAlpine Tunvalve Straight Through with 19/23mm Universal Connections Clear |
| Brand | McAlpine |
| Product Type | Tunvalve |
| Manufacturer Name | McAlpine & Co Ltd |
| Manufacturer Part Number | TUN5-CL |
| EAN | 5036484028174 |
| Warranty Period | 12 months |
| Materials | Clear Polycarbonate |
| Commercial Or Domestic Use | Both |
| Model Number | TUN5-CL |
| Colour Family | Whites |
| Colour | Clear |
| Application | Interior |
| Pack Quantity | 1 |
| Country Of Origin | United Kingdom |
| Recyclable | No |
| Renewable | No |
| Product Width | 49 mm |
| Product Weight | 0.0621 kg |
| Product Height | 112 mm |
| Product Length | 49 mm |
| Volume | 3.0E-4 m3 |
| Jointing System | Compression |
| Connector Type | female |
