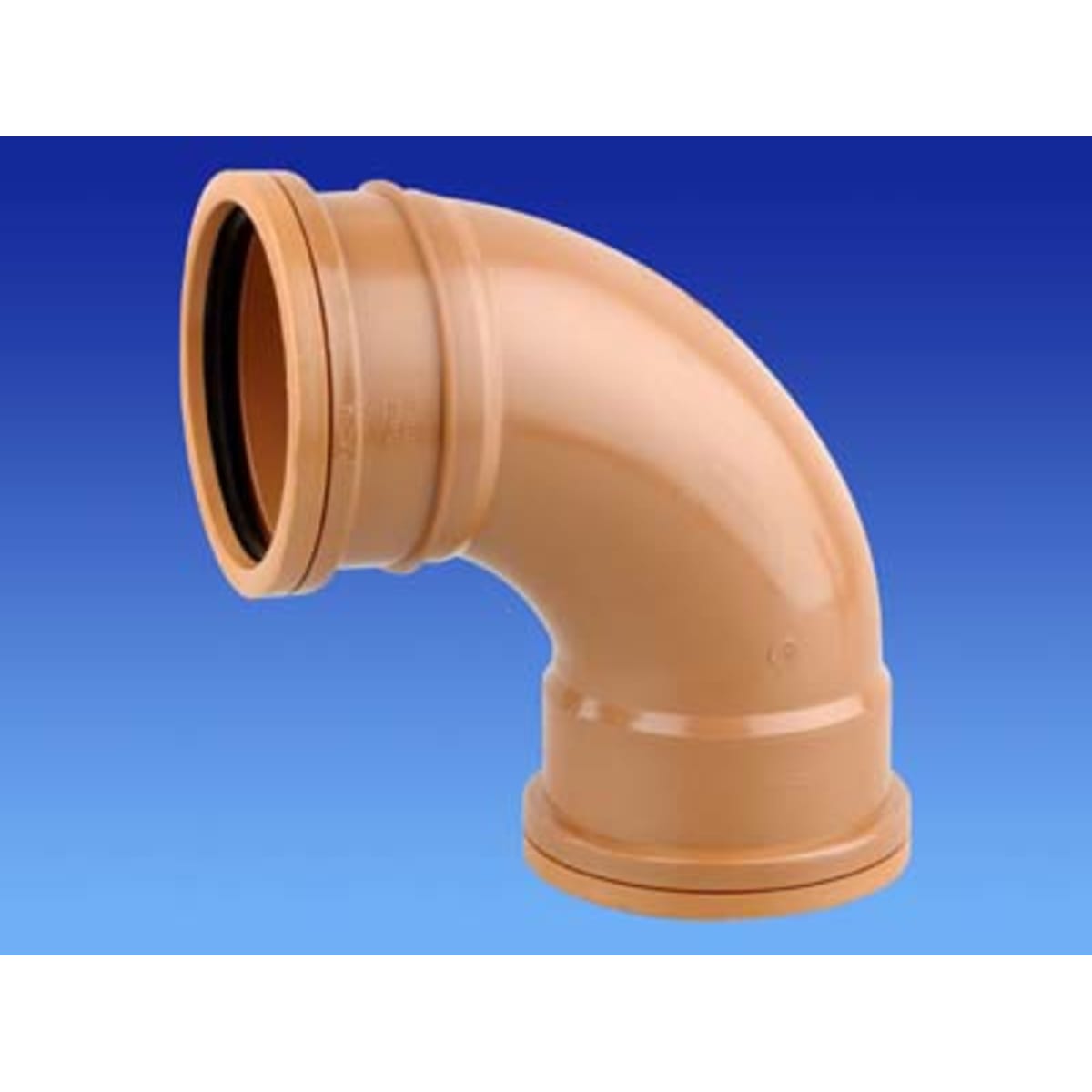

Osma 87.5° Double Socket Bend 75 x 160mm Brown
SKU: PO6D561Z
The Osma Double Socket Short Radius Bend 87.5° 75 x 160mm (L x Dia) Brown is designed with stiffness class of SN8. The product is manufactured from uPVC and is used for drainage applications with depth of 10m. The product is easy to demount. The bend is supplied with sockets on all ends. The sockets are fitted with ring seals which act as both sealing and expansion joint. The pipe installation is done by cutting it cleanly, at right angles to its axis and then fitting at one end through push fit system. With wall thickness of 4.1mm and bow range of 92.5mm, the bend is highly strong and durable. It is made with cut out marks to convert to a channel bend for use within traditional manholes.
Features & benefits
- Recyclable
- Resistant to most acidic, alkaline solutions
IDPO6D561Z
Electrics & Plumbing > Drainage > Below Ground Drainage > Osma 87.5° Double Socket Bend 75 x 160mm Brown
https://www.jewson.co.uk/p/osma-double-socket-short-radius-bend-87-5-degrees-75-x-160mm-brown-PO6D561Z
The Osma Double Socket Short Radius Bend 87.5° 75 x 160mm (L x Dia) Brown is designed with stiffness class of SN8. The product is manufactured from uPVC and is used for drainage applications with depth of 10m. The product is easy to demount. The bend is supplied with sockets on all ends. The sockets are fitted with ring seals which act as both sealing and expansion joint. The pipe installation is done by cutting it cleanly, at right angles to its axis and then fitting at one end through push fit system. With wall thickness of 4.1mm and bow range of 92.5mm, the bend is highly strong and durable. It is made with cut out marks to convert to a channel bend for use within traditional manholes.
Features & benefits
- Recyclable
- Resistant to most acidic, alkaline solutions
Specifications
| Product Name | Osma 87.5° Double Socket Bend 75 x 160mm Brown |
| Brand | Osma |
| Manufacturer Name | Wavin |
| Manufacturer Part Number | 6D561 |
| EAN | 5011479109076 |
| Compliance Approvals | BS EN 13476 & BS EN 1401-1 |
| Warranty Period | 12 months |
| Materials | PVC-U |
| Commercial Or Domestic Use | Both |
| Range | Double Socket Bend |
| Model Number | 6D561 |
| Colour | Golden brown |
| Application | internal/external |
| Pack Quantity | 1 |
| Country Of Origin | United Kingdom |
| Finish | Smooth |
| Recyclable | Yes |
| Renewable | No |
| Product Width | 190 mm |
| Product Weight | 1.73 kg |
| Product Height | 354 mm |
| Product Length | 354 mm |
| Diameter | 160 mm |
| Moisture Resistant | Yes |
| Angle | 87.5 degrees |
