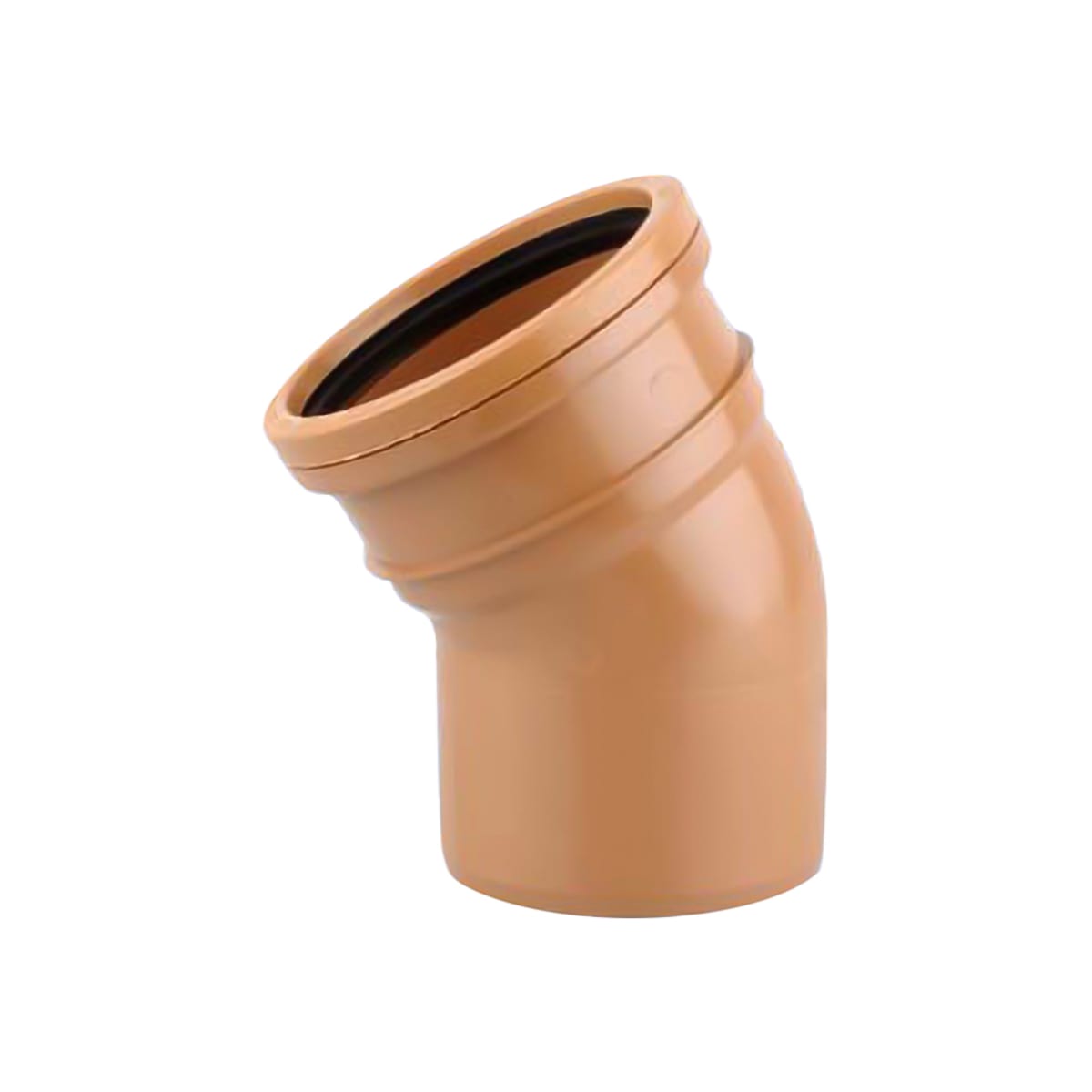

OsmaDrain 30° Single Socket Bend 110mm Brown

SKU: PO4D166Z
IDPO4D166Z Electrics & Plumbing > Drainage > Below Ground Drainage > OsmaDrain 30° Single Socket Bend 110mm Brown
Trade Sign in or apply for trade prices
£ 17
.18  inc VAT
 each
14.32 http://schema.org/InStock


Qty Quantity

Click & Deliver

Within 2 working days if ordered by 12pm

Click & Collect

Collect in 1 hour


Please log in/register  to save items.

Product information

The OsmaDrain Bend Single Socket is used in a foul and surface water drainage system with gravity drainage applications. It measures 132 x 58 x 132mm (H x L x W) and available in brown colour. This product includes a wide variety of components such as bends, junctions, rodding access, access fittings with inspection chambers and manhole bases. The ring seal socket incorporates captive seal technology for complete confidence in joint integrity and comes with 110mm diameter and 30° angle unit. The single socket bend conforms to BS EN 4660:2000, BS EN 752:2008, Kitemark and BBA certified. It has a relative density 1.45 approximately and decomposes at greater than 110° C.

Features & benefits
  • Unplasticised polyvinyl chloride material makes it strong and durable
  • Robust lightweight design for ease of manual efforts
  • Manufactured in line with BS EN 1401-1 standards
  • Provides a quick and effortless installation
  • Requires low-maintenance owing to its make
Specifications
Product Name OsmaDrain 30° Single Socket Bend 110mm Brown
Brand Osma
Manufacturer Name Wavin
Manufacturer Part Number 4D166
EAN 5011479107973
Compliance Approvals Kitemarked
Warranty Period 12  months
Materials Polyvinyl Chloride
Commercial Or Domestic Use Both
Range Single Socket Bends
Model Number 4D166
Colour Brown
Pack Quantity 10
Country Of Origin United Kingdom
Recyclable Yes
Renewable No
Product Width 132  mm
Product Weight 0.33  kg
Product Height 132  mm
Product Length 58  mm
Diameter 110  mm
Volume 4.67  m3
Moisture Resistant Yes
Angle 30  degrees
