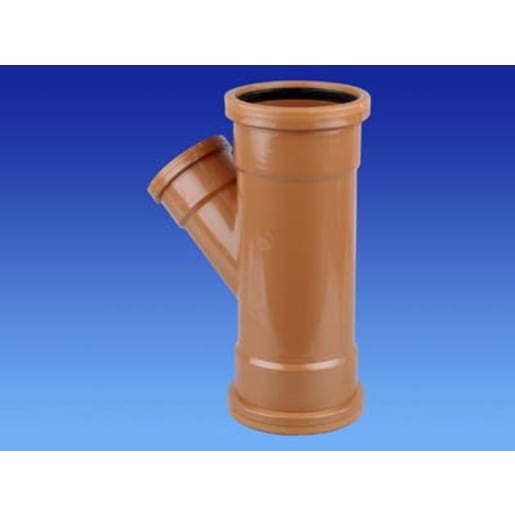

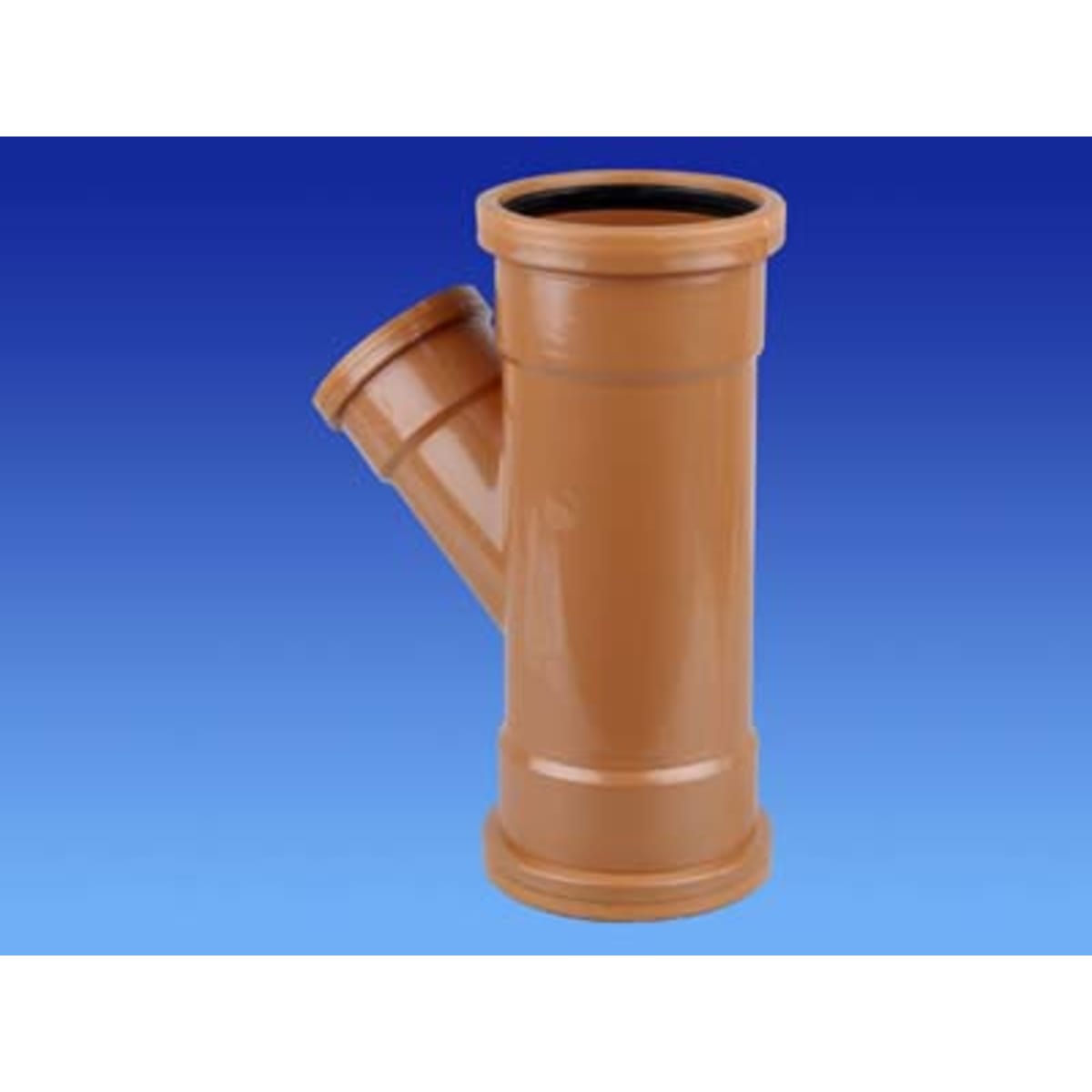

OsmaDrain 87.5° Double Socket Unequal Junction 160mm Brown
SKU: PO6D219Z
The OsmaDrain Double Socket Unequal Junction 87.5° 160mm Dia Brown is designed with stiffness class of SN8. The product is manufactured from uPVC and is used for drainage applications with depth of 10m. The product is easy to demount. The junction is supplied with sockets on all ends. The sockets are fitted with ring seals, which acts as both a sealing and expansion joint. The pipe installation is done by cutting it cleanly, at right angles to its axis and then fitting at one end through push fit system. It is made with cut out marks to convert to a channel bend for use within traditional manholes. Making it suitable for use in gravity drainage and sewer installations.
Features & benefits
- Recyclable
- Corrosion resistant
IDPO6D219Z
Electrics & Plumbing > Drainage > Below Ground Drainage > OsmaDrain 87.5° Double Socket Unequal Junction 160mm Brown
https://www.jewson.co.uk/p/osmadrain-double-socket-unequal-junction-87-5-degree-160mm-dia-brown-PO6D219Z
Get lower prices with a Jewson account
£100.80
inc VAT, Each
84.0
http://schema.org/InStock
Please sign in/register to save items.
The OsmaDrain Double Socket Unequal Junction 87.5° 160mm Dia Brown is designed with stiffness class of SN8. The product is manufactured from uPVC and is used for drainage applications with depth of 10m. The product is easy to demount. The junction is supplied with sockets on all ends. The sockets are fitted with ring seals, which acts as both a sealing and expansion joint. The pipe installation is done by cutting it cleanly, at right angles to its axis and then fitting at one end through push fit system. It is made with cut out marks to convert to a channel bend for use within traditional manholes. Making it suitable for use in gravity drainage and sewer installations.
Features & benefits
- Recyclable
- Corrosion resistant
Specifications
Product Name | OsmaDrain 87.5° Double Socket Unequal Junction 160mm Brown |
Brand | Osma |
Manufacturer Name | Wavin |
Manufacturer Part Number | 6D219 |
EAN | 5011479108932 |
Compliance Approvals | BS EN 13476 & BS EN 1401-1 |
Warranty Period | 12 months |
Materials | PVC-U |
Commercial Or Domestic Use | Both |
Range | Double Socket Junction |
Model Number | 6D219 |
Colour | Golden brown |
Application | internal/external |
Pack Quantity | 1 |
Country Of Origin | United Kingdom |
Finish | Smooth |
Recyclable | Yes |
Renewable | No |
Product Width | 190 mm |
Product Weight | 2.1 kg |
Product Height | 326 mm |
Product Length | 443 mm |
Diameter | 160 mm |
Moisture Resistant | Yes |
Angle | 87.5 degrees |
