Raptor Grade 13 Ball Bearing Hinge & Intumescent Pack 102x76mm
Satin Stainless Steel
Pack of 3
SKU: RAP11346

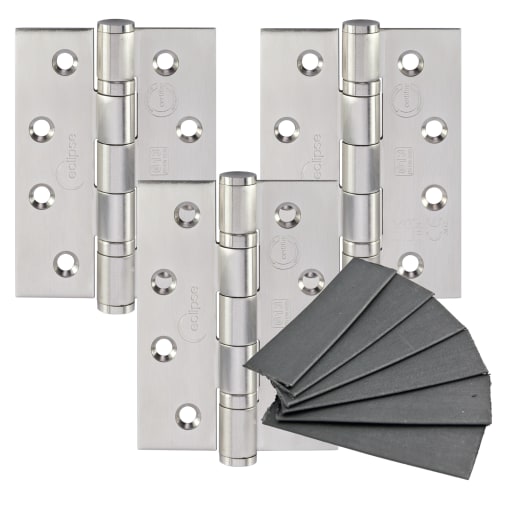

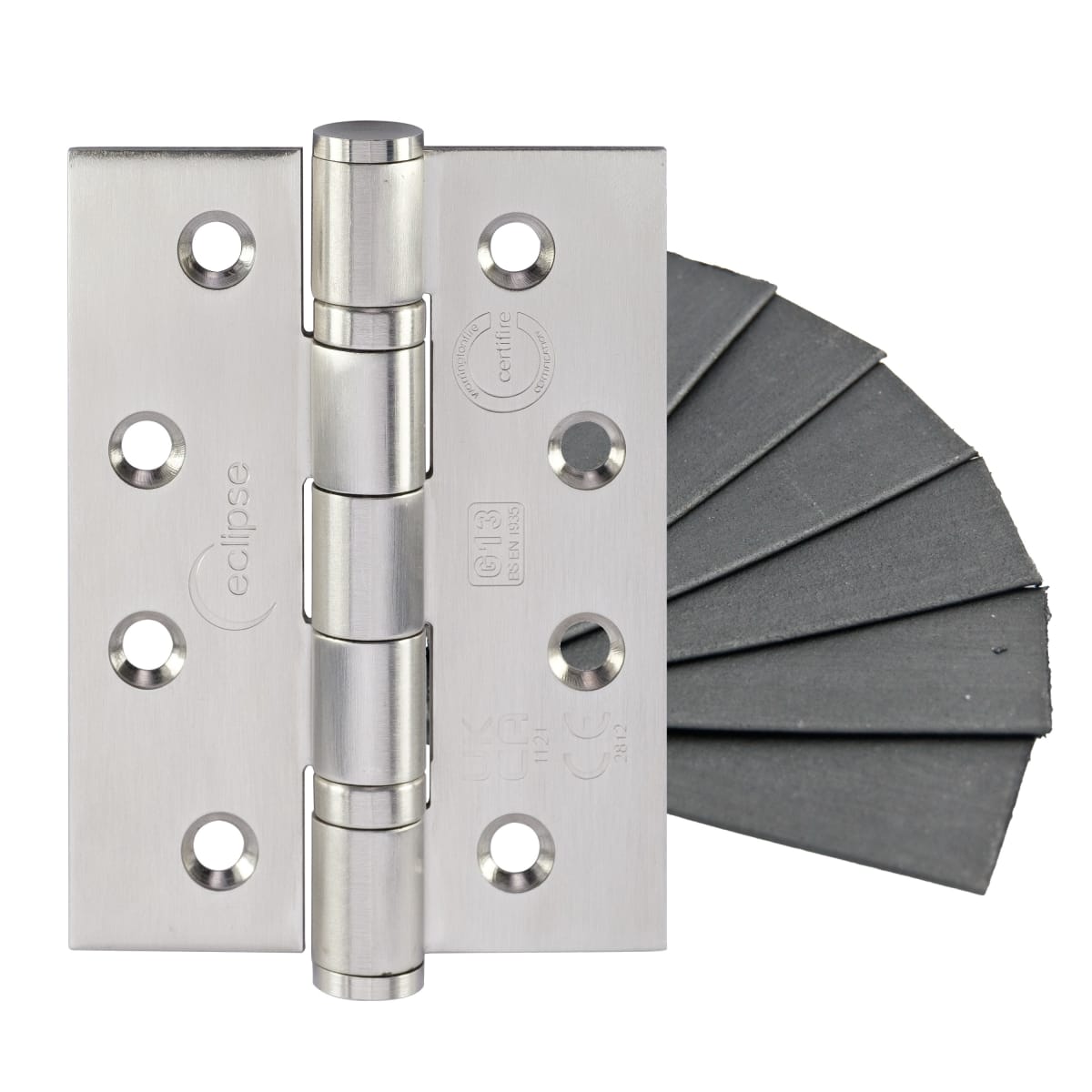

Raptor Grade 13 Ball Bearing Hinge Fire Door Hinge & Intumescent Pack. BS EN1935 Grade 13, 120kg Performance Tested and BS EN1634 Fire Rated to FD30, FD60, FD90, FD120 Minute Timber Doors & FD240 Steel. CE & UKCA & Certifire accredited. Sold as a pack of 3 and supplied with fixings. Provided in a Satin Stainless Steel Finish.
Features & benefits
- Suitable For Use On Fire DoorS
- Suitable For Doors Up To 120kg
- For FD30, 60, 90 & 120 Fire Doors (When fitted with correct intumescent)
- BS EN1935 Performance Tested
- BS EN1634 Fire Rated
- CE, UKCA, CERTIFIRE
- Supplied With Fixings
IDRAP11346
Doors & Joinery > Ironmongery > Fittings & Accessories > Raptor Grade 13 Ball Bearing Hinge & Intumescent Pack 102x76mm<BR>Satin Stainless Steel<BR>Pack of 3
https://www.jewson.co.uk/p/raptor-grade-13-stainless-steel-ball-bearing-hinge-102x76mm-satin-stainless-steel-pack-of-3-RAP11346
Raptor Grade 13 Ball Bearing Hinge Fire Door Hinge & Intumescent Pack. BS EN1935 Grade 13, 120kg Performance Tested and BS EN1634 Fire Rated to FD30, FD60, FD90, FD120 Minute Timber Doors & FD240 Steel. CE & UKCA & Certifire accredited. Sold as a pack of 3 and supplied with fixings. Provided in a Satin Stainless Steel Finish.
Features & benefits
- Suitable For Use On Fire DoorS
- Suitable For Doors Up To 120kg
- For FD30, 60, 90 & 120 Fire Doors (When fitted with correct intumescent)
- BS EN1935 Performance Tested
- BS EN1634 Fire Rated
- CE, UKCA, CERTIFIRE
- Supplied With Fixings
Specifications
| Product Name | Raptor Grade 13 Ball Bearing Hinge & Intumescent Pack 102x76mm<BR>Satin Stainless Steel<BR>Pack of 3 |
| Brand | Raptor |
| Product Type | Hinge |
| Manufacturer Name | Raptor |
| Manufacturer Part Number | RAP11346 |
| EAN | 5715624113467 |
| Compliance Approvals | CE, UKCA, CERTIFIRE |
| Warranty Period | 2 years |
| Materials | Stainless Steel |
| Commercial Or Domestic Use | Both |
| Range | Ball Bearing Hinges |
| Model Number | RAP11346 |
| Colour Family | Metals |
| Colour | Stainless Steel |
| Application | Fire Doors |
| BS EN Fire rating/performance classifications | BS EN1634, BS EN1935 |
| Pack Quantity | 3 |
| Country Of Origin | CN |
| Applicable Standards | BS EN1935, BS EN1634 |
| Finish | Satin |
| Recyclable | Yes |
| Renewable | No |
| Product Width | 76 mm |
| Product Height | 3 mm |
| Product Length | 102 mm |
| Thickness | 3 mm |
| Maximum Door weight | 120 kg |
