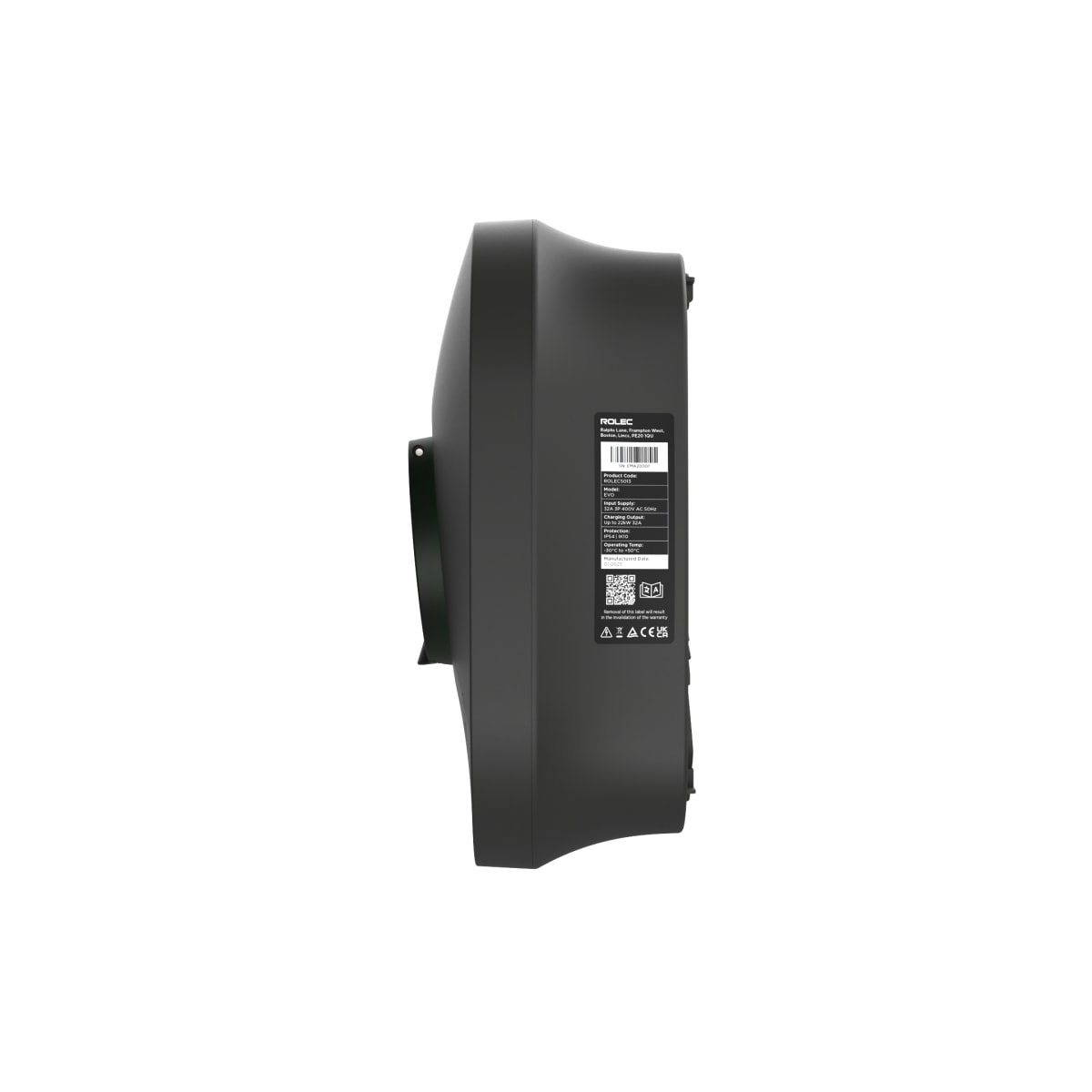

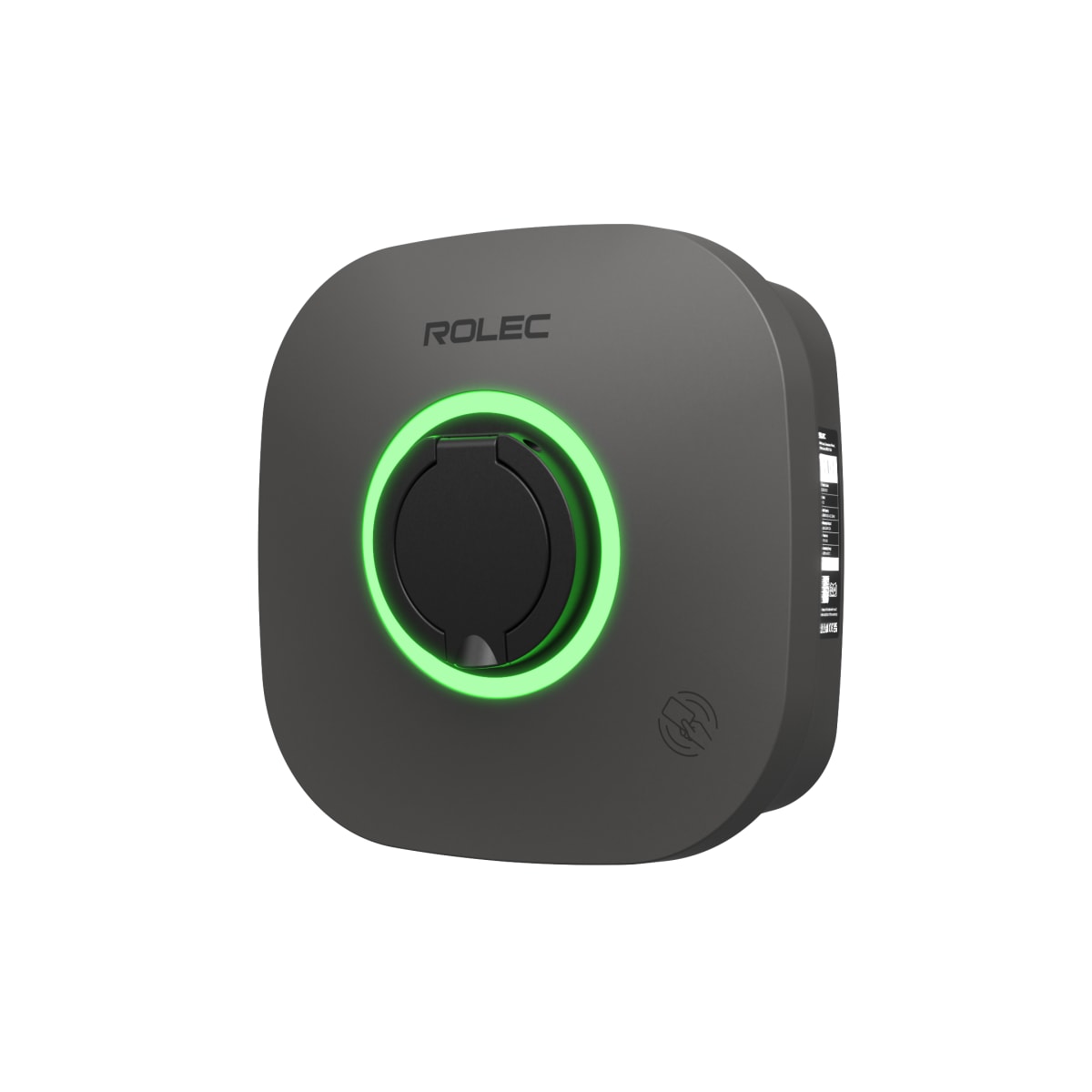

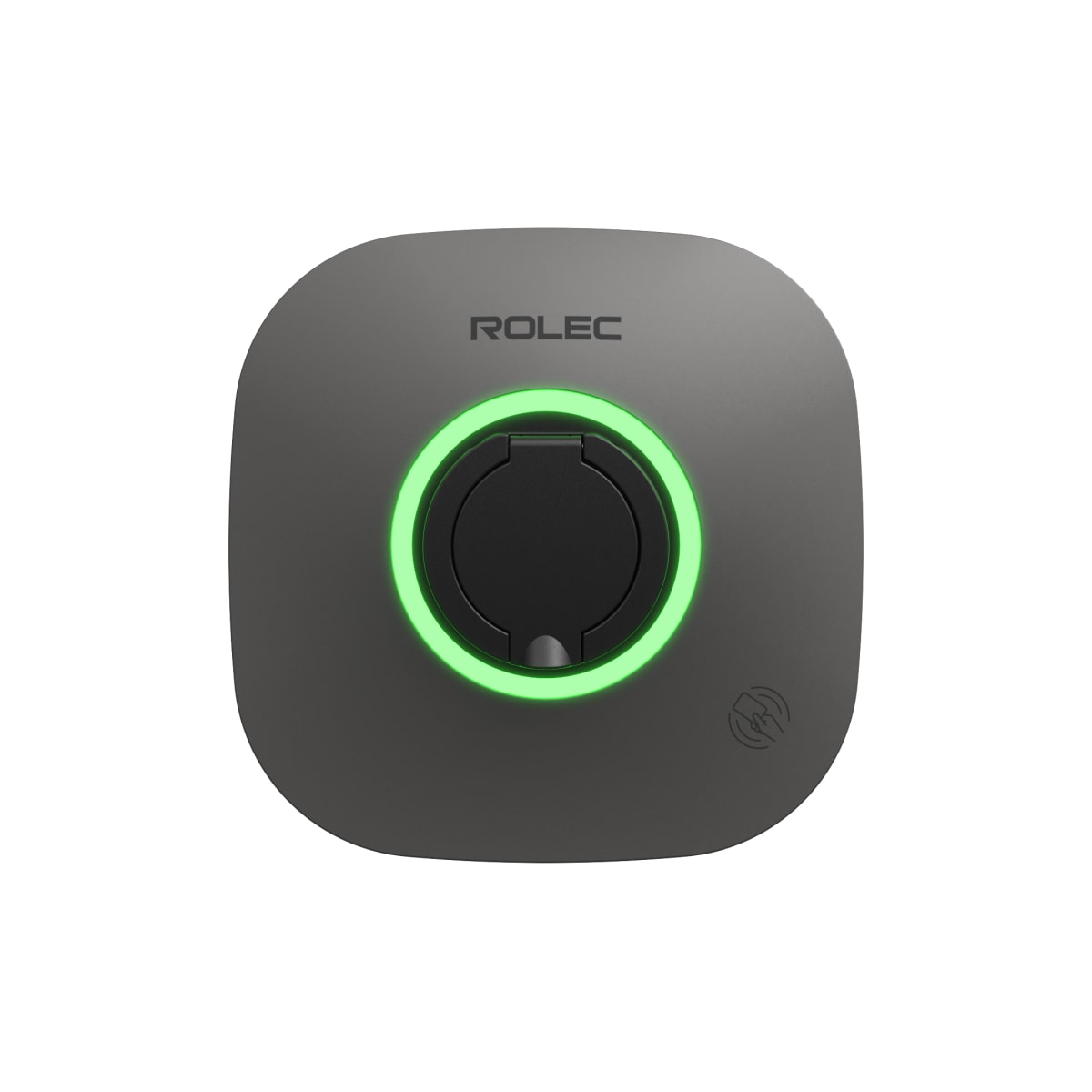

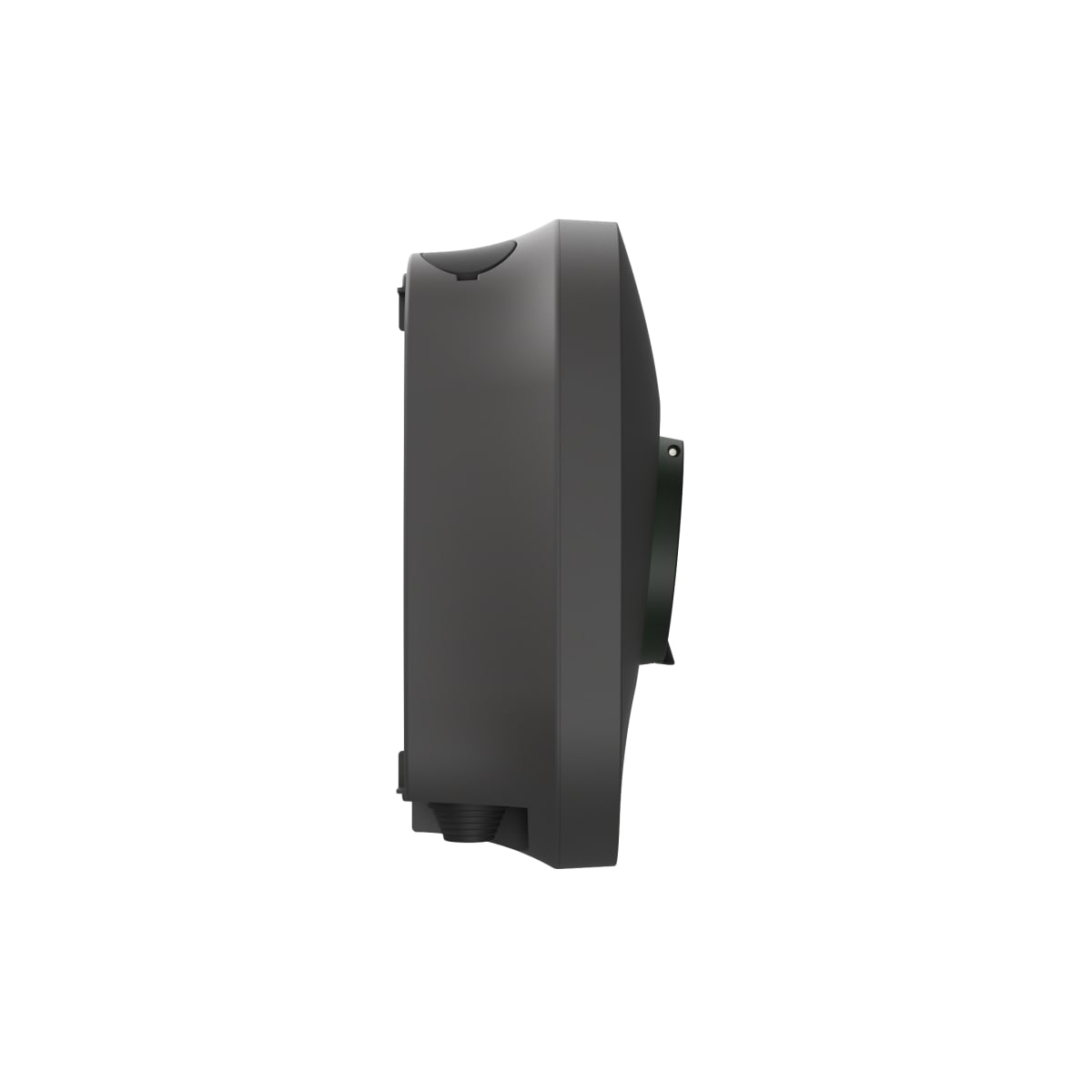

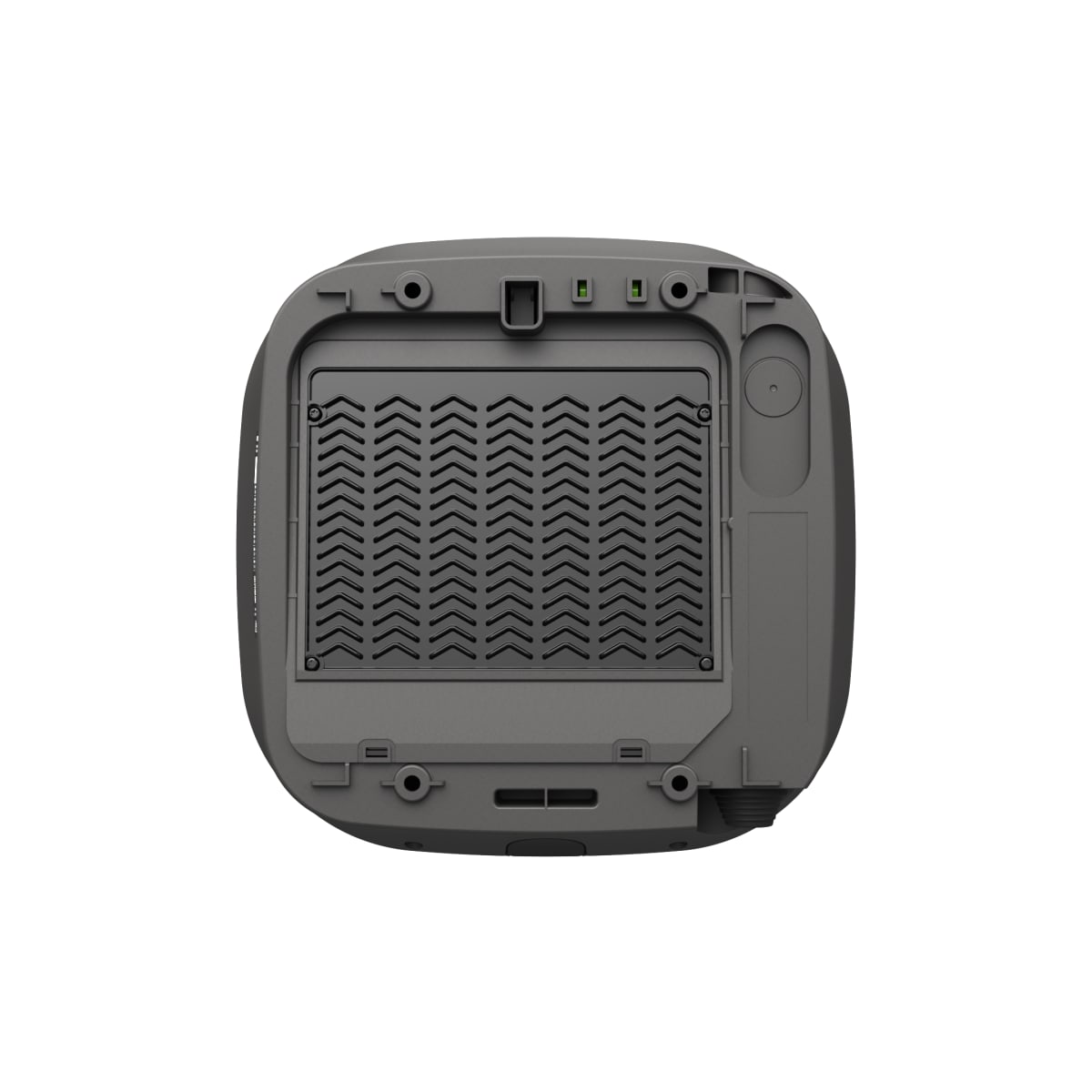

Rolec Evo Smart EV Charger up to 22kW 3PH Universal Socket
SKU: ROLC5013
The EVO charging unit is an affordable, compact, and stylish EV charging solution designed for both drivers and installers.
This 22kW three phase model offers an easy-to-use, fully compatible superfast charging solution for all EVs and PHEVs.
EVO also supports solar integration, allowing users to activate Eco+ mode, which only allocates any available surplus solar power to the vehicle for a 100% renewable, cost-free charge.
With the EVO app, users have full control of their charger including the ability to set charging schedules and integrate with smart tariffs to save on off-peak rates. Alternatively, users can connect their charger to any OCPP app of their choice.
EVO ensures a seamless charging experience, keeping EVs ready for their next electrified adventure.
Features & benefits
- Universal charging 22kW socket with cable lock
- Plug & go, mobile app or RFID controlled charging
- 2x EVO RFID charging cards included
- Scheduled / off-peak charging
- Dynamic load balancing (optional, DLB CT kit required)
- Surplus solar charging compatible (optional, solar CT kit required)
- PME, AC 30mA Type A & DC 6mA protection
- OCPP 1.6 compliant (integrates with any CPMS)
- 4G / Wi-Fi / Ethernet connectivity
- Three to Single Phase switching
- Strong and durable IP54 / IK10 rated
- 5-year warranty
IDROLC5013
Electrics & Plumbing > Electrical > EV Chargers > Rolec Evo Smart EV Charger up to 22kW 3PH Universal Socket
https://www.jewson.co.uk/p/rolec-evo-smart-ev-charger-up-to-22kw-3ph-universal-socket-ROLC5013
The EVO charging unit is an affordable, compact, and stylish EV charging solution designed for both drivers and installers.
This 22kW three phase model offers an easy-to-use, fully compatible superfast charging solution for all EVs and PHEVs.
EVO also supports solar integration, allowing users to activate Eco+ mode, which only allocates any available surplus solar power to the vehicle for a 100% renewable, cost-free charge.
With the EVO app, users have full control of their charger including the ability to set charging schedules and integrate with smart tariffs to save on off-peak rates. Alternatively, users can connect their charger to any OCPP app of their choice.
EVO ensures a seamless charging experience, keeping EVs ready for their next electrified adventure.
Features & benefits
- Universal charging 22kW socket with cable lock
- Plug & go, mobile app or RFID controlled charging
- 2x EVO RFID charging cards included
- Scheduled / off-peak charging
- Dynamic load balancing (optional, DLB CT kit required)
- Surplus solar charging compatible (optional, solar CT kit required)
- PME, AC 30mA Type A & DC 6mA protection
- OCPP 1.6 compliant (integrates with any CPMS)
- 4G / Wi-Fi / Ethernet connectivity
- Three to Single Phase switching
- Strong and durable IP54 / IK10 rated
- 5-year warranty
| Product Name | Rolec Evo Smart EV Charger up to 22kW 3PH Universal Socket |
| Brand | Rolec |
| Product Type | EV Charging Units |
| Manufacturer Name | Rolec |
| Manufacturer Part Number | ROLEC5013 |
| EAN | 5060723057373 |
| Warranty Period | 5 years |
| Output Power | 22 kW |
| Commercial Or Domestic Use | Both |
| Range | Home EV Chargers |
| Colour | Daytona Grey |
| Pack Quantity | 1 |
| Applicable Standards | EV Charging compliance – EN IEC 61851-1:2019, EN IEC 61851-21-2:2021 Smart Charge Points – SI 2021/1467 Wire Regulations – BS 7671:2018+A2:2022 EMC Compliance – EN 301 489-1 V2.2.3, EN 301 489-3 V2.3.2, Draft EN 301 489-17 V3.2.5, EN 301 489-52 V1.2.1 Safety Compliance – EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020, EN 62479:2010 Communications /RED – EN 300 328 V2.2.2, EN 301 908-1 V15.2.1, EN 301 908-13 V13.2.1, EN 301 511 V12.5.1, EN 300 330 V2.1.1 Environmental Protection – BS EN 60529:1992+A2:2013 Impact Rating – BS EN62262:2002+A1:2021 RoHS – 2011/65/EU as amended by (EU) 2015/863, IEC 63000:2018 REACH – 1907/2006 Certificate Markings – CE & UKCA Third party certifications – TÜV, WEEE |
| Voltage | 400 V |
| Product Width | 260 mm |
| Product Weight | 2.6 kg |
| Product Height | 260 mm |
| Product Depth | 112 mm |
