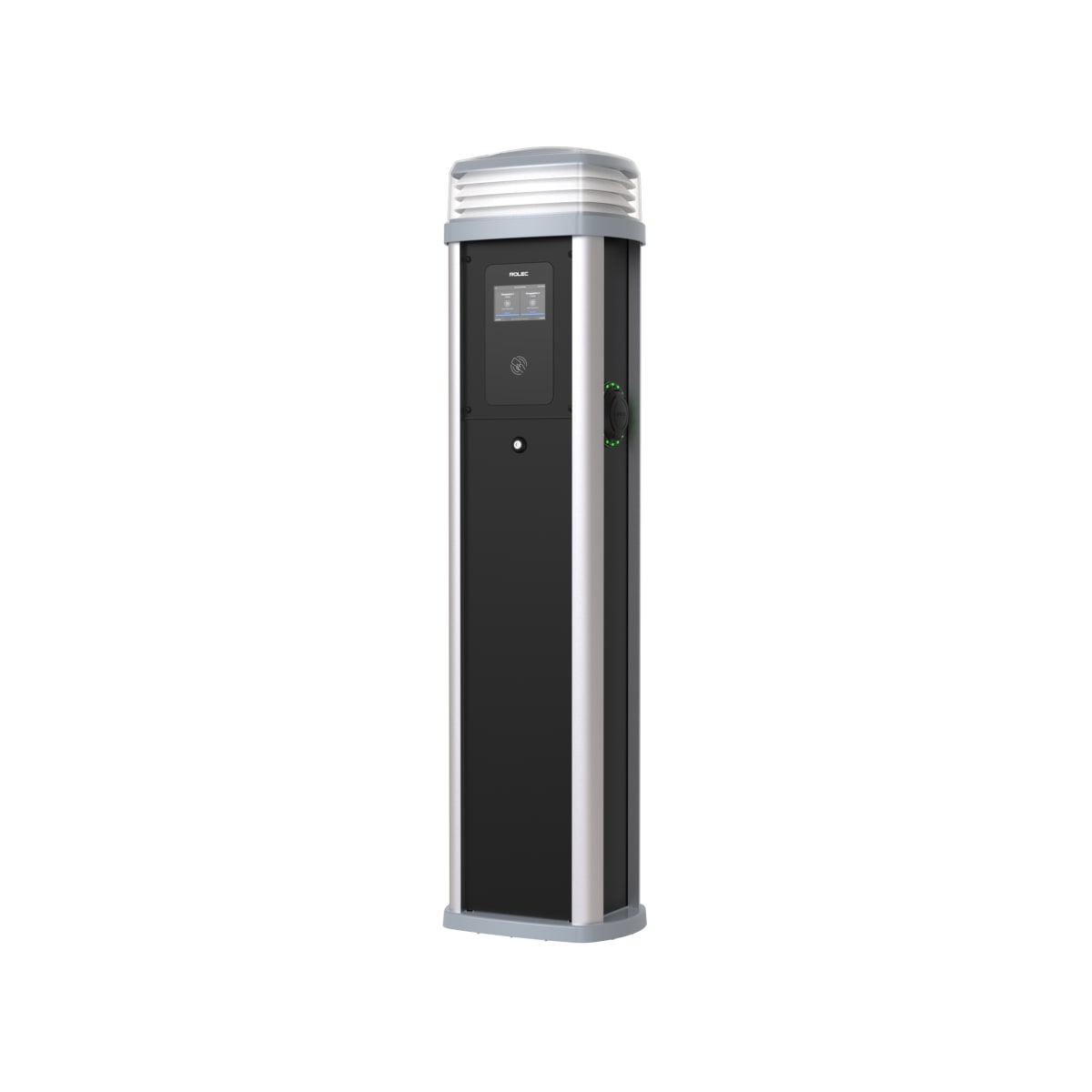

Rolec Quantum Smart EV Charging Pedestal with LCD Screen 2x up to 22kW 3PH Type 2 Sockets
SKU: ROL2423B
The QUANTUM EV charging pedestal is a sophisticated and resilient EV charging point, providing a combination of durability and impeccable design for all locations. This charger’s integrated LED amenity lighting also provides greater visibility of the charging bays and surrounding areas.
This future-proof OCPP compliant pedestal can offer a simple Plug & go or pay-to-charge solution via app or RFID card/fob through any chosen OCPP chargepoint management system. Additionally, the 5" LCD screen displays real-time charging status.
Feature-rich, this EV charger supports dynamic load balancing and is equipped with PME fault detection, so there is no requirement for an earth rod, reducing installation costs.
This dual outlet model provides up to 22kW superfast charging per socket, allowing two vehicles to charge simultaneously.
Features & benefits
- Suitable for commercial installations and comes complete with integrated LED amenity lighting head
- Plug & go, mobile app or RFID controlled charging
- PME, AC 30mA Type A & DC 6mA protection
- Supports dynamic load balancing & dynamic and static load management
- OCPP 1.6 compliant (integrates with any CPMS)
- Built-in MID approved energy metering and 5" LCD Screen
- Easy to install & maintain with lockable front access door
- Dual tamper and breach security notifications
- 4G / Wi-Fi / Ethernet connectivity
- Branding & colour options available
- OZEV grant fundable
- Designed & manufactured in the UK, backed by a 3-year warranty
IDROL2423B
Electrics & Plumbing > Electrical > EV Chargers > Rolec Quantum Smart EV Charging Pedestal with LCD Screen 2x up to 22kW 3PH Type 2 Sockets
https://www.jewson.co.uk/p/rolec-quantum-smart-ev-charging-pedestal-with-lcd-screen-2x-up-to-22kw-3ph-type-2-sockets-ROL2423B
The QUANTUM EV charging pedestal is a sophisticated and resilient EV charging point, providing a combination of durability and impeccable design for all locations. This charger’s integrated LED amenity lighting also provides greater visibility of the charging bays and surrounding areas.
This future-proof OCPP compliant pedestal can offer a simple Plug & go or pay-to-charge solution via app or RFID card/fob through any chosen OCPP chargepoint management system. Additionally, the 5" LCD screen displays real-time charging status.
Feature-rich, this EV charger supports dynamic load balancing and is equipped with PME fault detection, so there is no requirement for an earth rod, reducing installation costs.
This dual outlet model provides up to 22kW superfast charging per socket, allowing two vehicles to charge simultaneously.
Features & benefits
- Suitable for commercial installations and comes complete with integrated LED amenity lighting head
- Plug & go, mobile app or RFID controlled charging
- PME, AC 30mA Type A & DC 6mA protection
- Supports dynamic load balancing & dynamic and static load management
- OCPP 1.6 compliant (integrates with any CPMS)
- Built-in MID approved energy metering and 5" LCD Screen
- Easy to install & maintain with lockable front access door
- Dual tamper and breach security notifications
- 4G / Wi-Fi / Ethernet connectivity
- Branding & colour options available
- OZEV grant fundable
- Designed & manufactured in the UK, backed by a 3-year warranty
| Product Name | Rolec Quantum Smart EV Charging Pedestal with LCD Screen 2x up to 22kW 3PH Type 2 Sockets |
| Brand | Rolec |
| Product Type | EV Charging Units |
| Manufacturer Name | Rolec |
| Manufacturer Part Number | ROLEC2423B |
| EAN | 5060723056338 |
| Warranty Period | 3 years |
| Output Power | 22 kW |
| Commercial Or Domestic Use | Commercial |
| Range | Commercial Chargers |
| Colour | Black |
| Pack Quantity | 1 |
| Applicable Standards | EV Charging Compliance – EN 61851-1:2019, EN 61851-22:2002 Smart Charge Points – (SI 2021/1467) Wiring Regulations – BS 7671:2018+A2:2022 EMC Compliance – EN 61000-6-3:2007+A1:2011, EN 61000-6-2:2005, 2014/30 /EU, SI 2016/1091 Safety Compliance (LVD) – EN 62368-1:2014, 2014/35/EU, SI 2016/1101 30 mA AC & 6 mA DC Protection – in accordance with IEC EN 61009-1:2012+A12:2016, IEC61009-2-1:1994+A11:1998, BS IEC 62955:2018 Communications / RED – EN 62311:2008, 2014/53/EU, SI 2017/1206, EN 300 330 V2.1.1 (2017-02), EN 301 908-1 V15.1.1 (2021-09), EN 301 908-13 V13.2.1 (2022-02), EN 301 511 V12.5.1 (2017-03), EN 300 328 V2.2.2 (2019-07), EN 300 440 V2.2.1 (2018-07) Environmental Protection – BS EN 60529:1992+A2:2013 Impact Rating – BS EN 62262:2002+A1:2021 Metering – 2014/32/EU, SI 2016/1153 Accessibility – PAS 1899 accessible charging standard (when installed in at the specified hight) RoHS – 2011/65/EU, SI 2012/3032 REACH – 1907/2006, REACH etc. (Amendment) Regulations 2021 Certification Markings – CE & UKCA |
| Voltage | 400 V |
| Product Width | 375 mm |
| Product Weight | 34 kg |
| Product Height | 1440 mm |
| Product Depth | 275 mm |
