Simpson Strong-Tie Heavy Duty Faced Fixed U Joist Hanger 145 x 91 x 2mm

SKU: HWSISA06

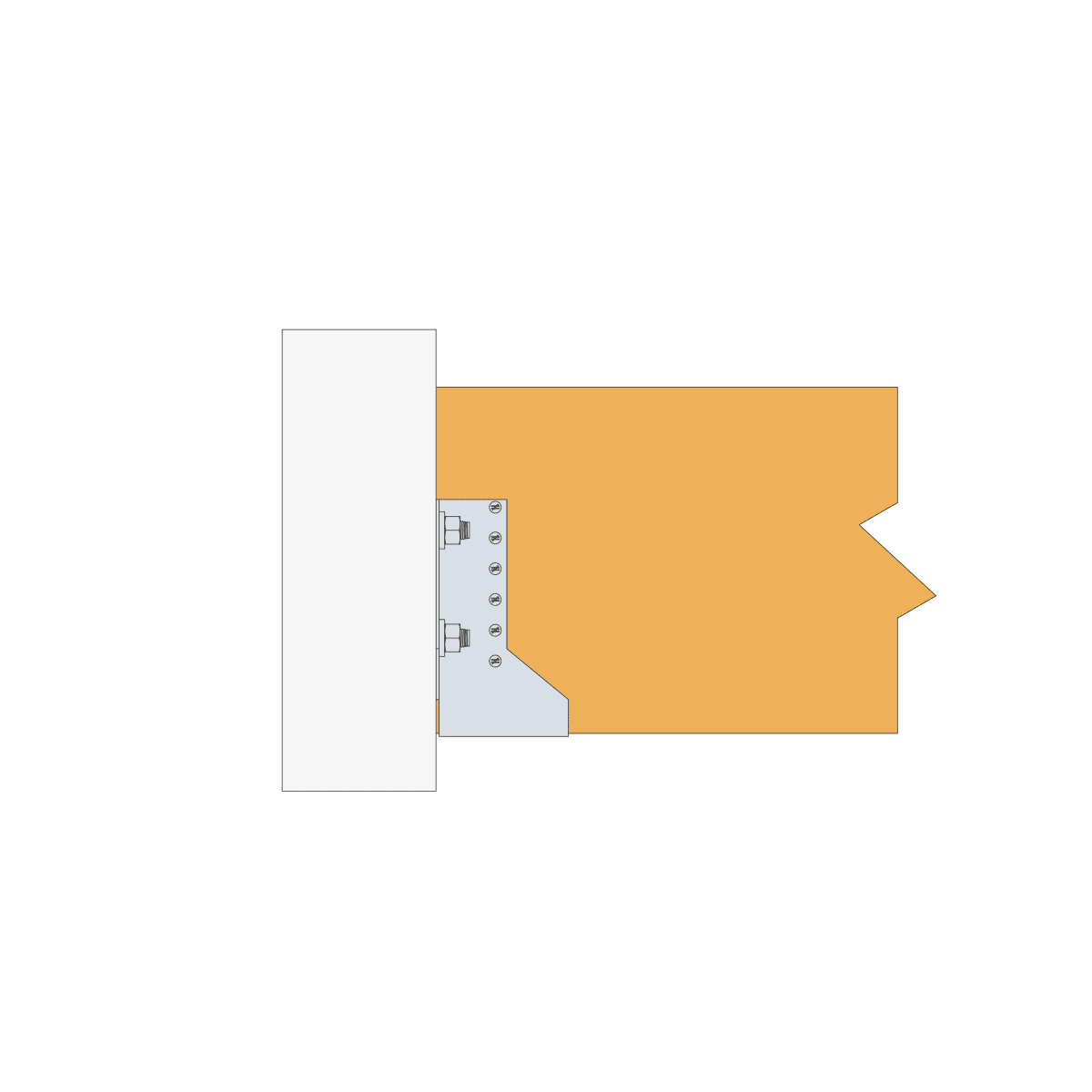

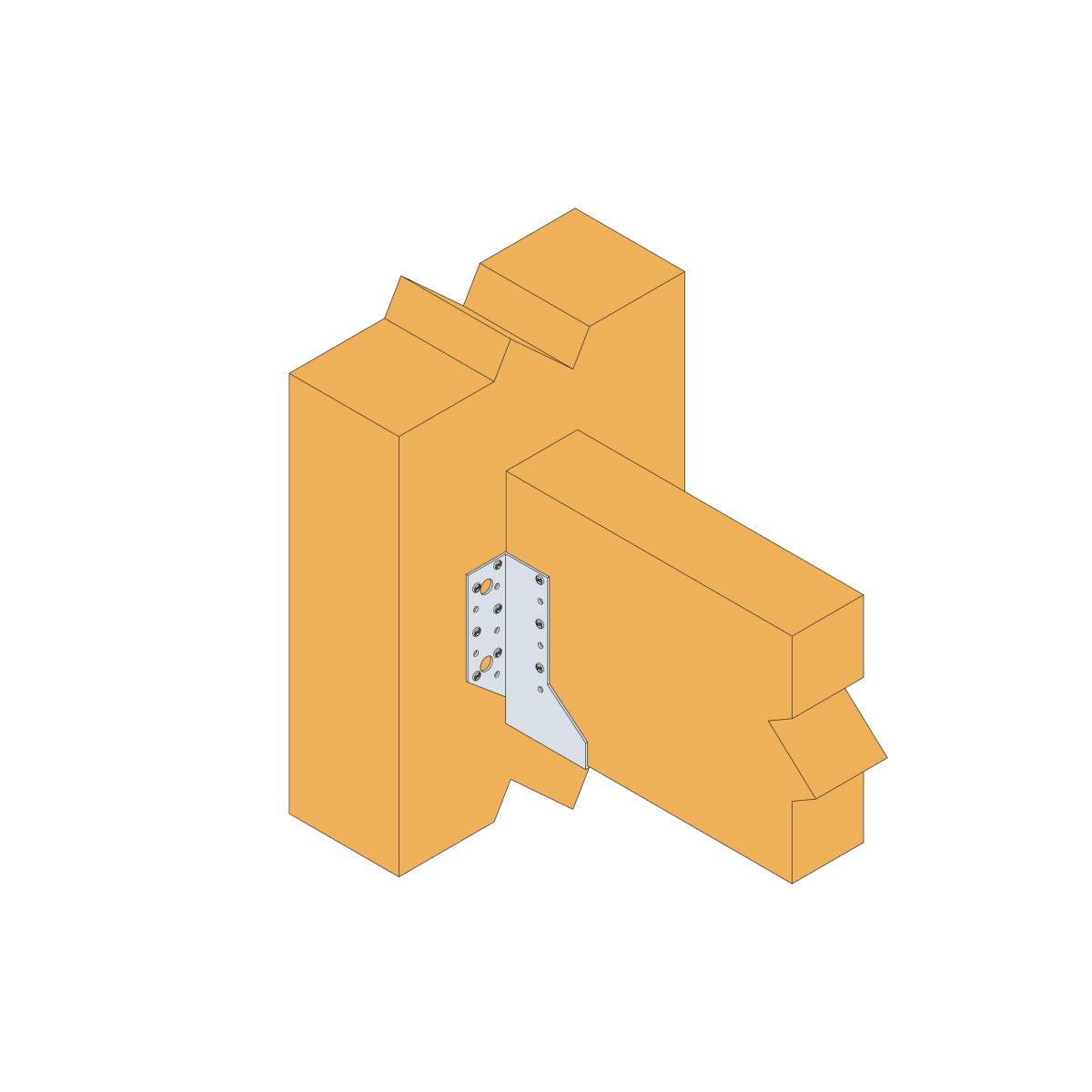

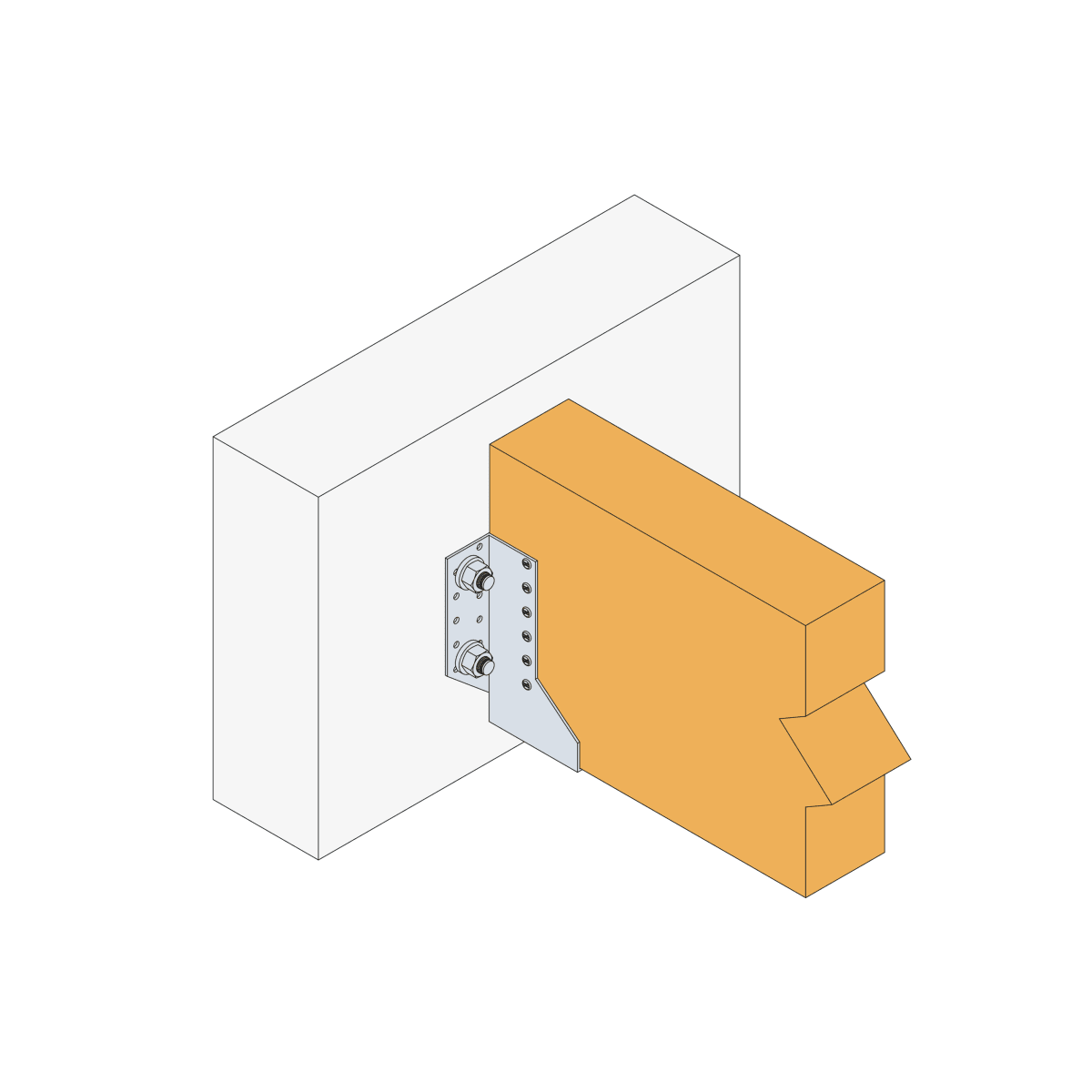

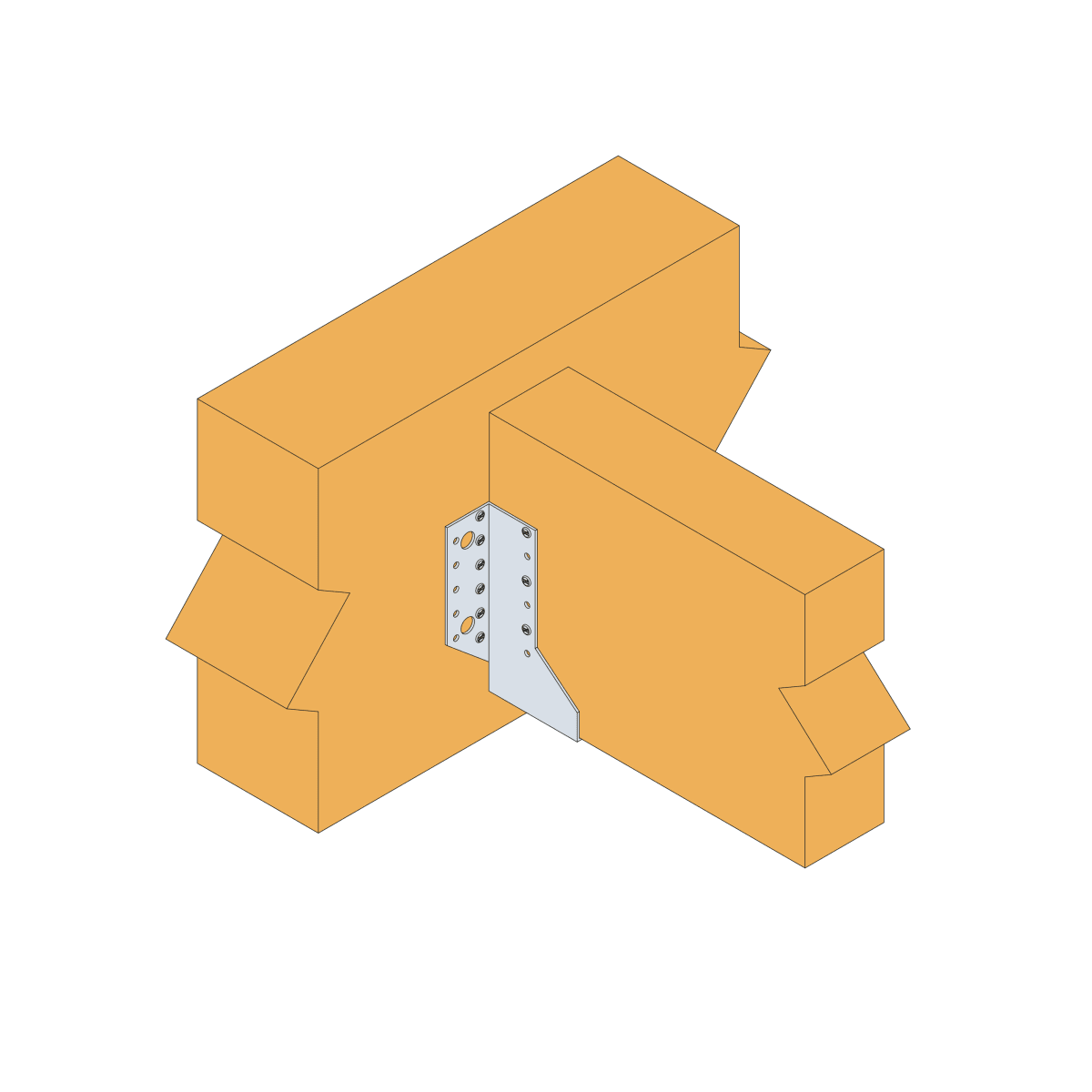

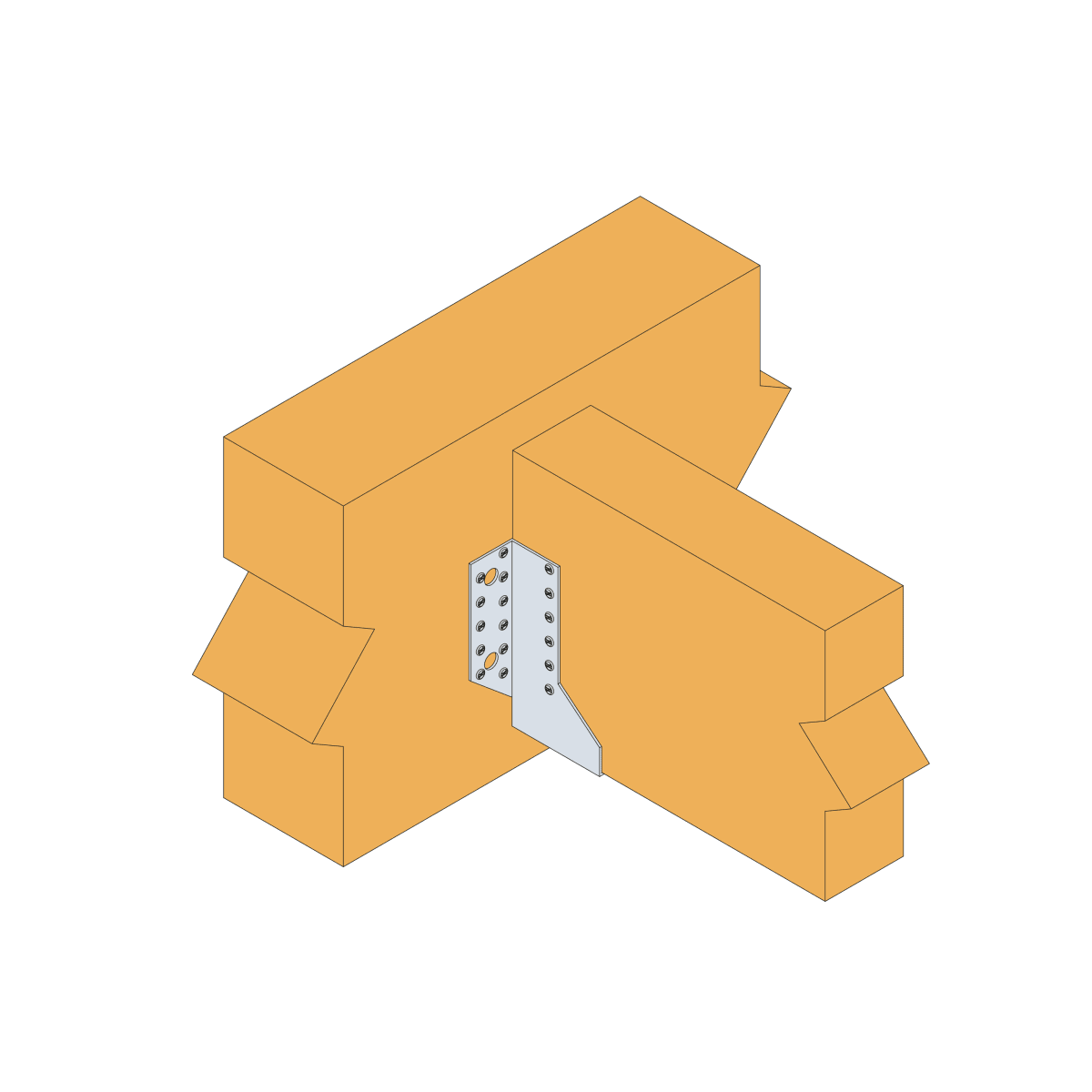

Simpson Strong-Tie Heavy U Joist Hanger 145 x 91 x 2mm (H x W x T) is a heavy duty hanger designed for timber-to-timber applications that require additional strength. The hanger depth should be at least 60% of the carried member depth to prevent rotation unless another means of lateral restraint is added to the joist. The SAE timber to masonry bolted capacity to be determined in accordance with the required standards.
Features & benefits
  • Corrosion resistant
  • To aid inspection from the ground a built-in inspection slot is provided at the base of the hanger
  • Superior performance due to the top flange providing the widest area in contact with masonry support
  • Holes allow improved mortar keying and embossments on JHM stiffen the top flange
  • Greatly enhanced resistance to joist rotation due to the higher JHM side flange on deeper hangers being much higher than a traditional style
IDHWSISA06 Building Materials > Builders Metalwork > Joist Hangers > Simpson Strong-Tie Heavy Duty Faced Fixed U Joist Hanger 145 x 91 x 2mm
Trade Sign in or apply for trade prices
£8.56 inc VAT, Each
7.13 http://schema.org/InStock


Please sign in/register to save items.

Simpson Strong-Tie Heavy U Joist Hanger 145 x 91 x 2mm (H x W x T) is a heavy duty hanger designed for timber-to-timber applications that require additional strength. The hanger depth should be at least 60% of the carried member depth to prevent rotation unless another means of lateral restraint is added to the joist. The SAE timber to masonry bolted capacity to be determined in accordance with the required standards.
Features & benefits
  • Corrosion resistant
  • To aid inspection from the ground a built-in inspection slot is provided at the base of the hanger
  • Superior performance due to the top flange providing the widest area in contact with masonry support
  • Holes allow improved mortar keying and embossments on JHM stiffen the top flange
  • Greatly enhanced resistance to joist rotation due to the higher JHM side flange on deeper hangers being much higher than a traditional style

Specifications
Product Name Simpson Strong-Tie Heavy Duty Faced Fixed U Joist Hanger 145 x 91 x 2mm
Brand Simpson Strong-Tie
Manufacturer Name Simpson Strong-Tie
Manufacturer Part Number SAE380/91/2/25
EAN 3523140003276
Materials Steel
Commercial Or Domestic Use Both
Range Joist Hanger
Application Interior/External
Pack Quantity 1
Country Of Origin United States of America
Finish Galvanised
Product Width 91  mm
Product Height 145  mm
Thickness 2  mm
