BG Weatherproof Switched Fused Connection Unit with LED IP66 Grey

SKU: ELWP5302

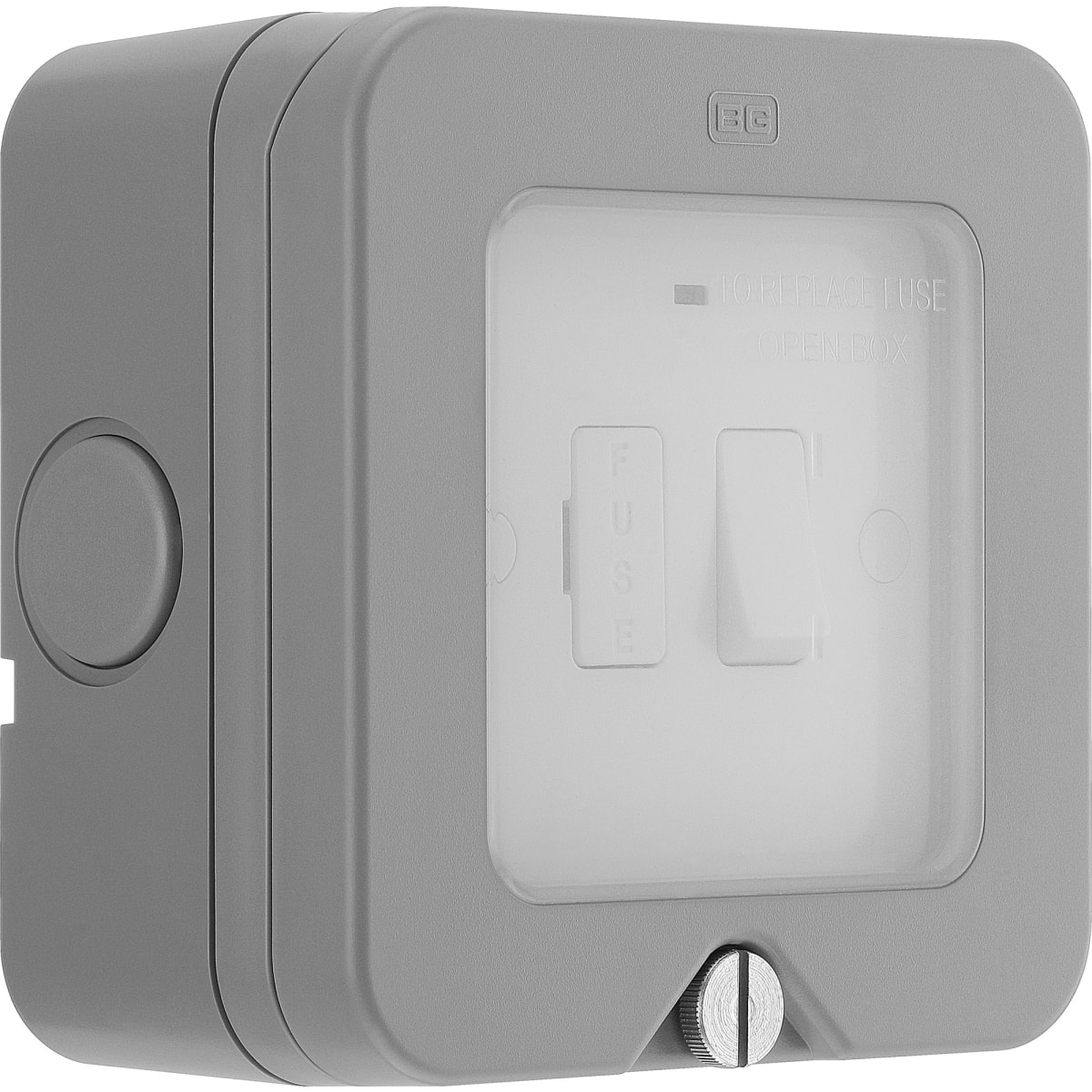

This BG switched fused connection unit with LED is ideal for spur circuits and hardwired outdoor appliances, allowing isolation from the mains supply and easy access to the fuse. Supplied with IP66 rated high-impact weatherproof case with multiple knockouts for straight forward installation.
Features & benefits
  • Outdoor 13A LED Fuse Spur Switch with Flex Outlet: Operates one fixed appliance in a circuit, providing built-in access to the fuse. Ideal for spur circuits. The fuse is clearly labelled.

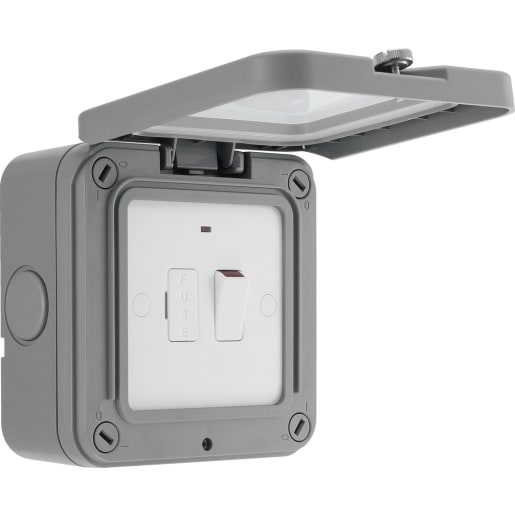

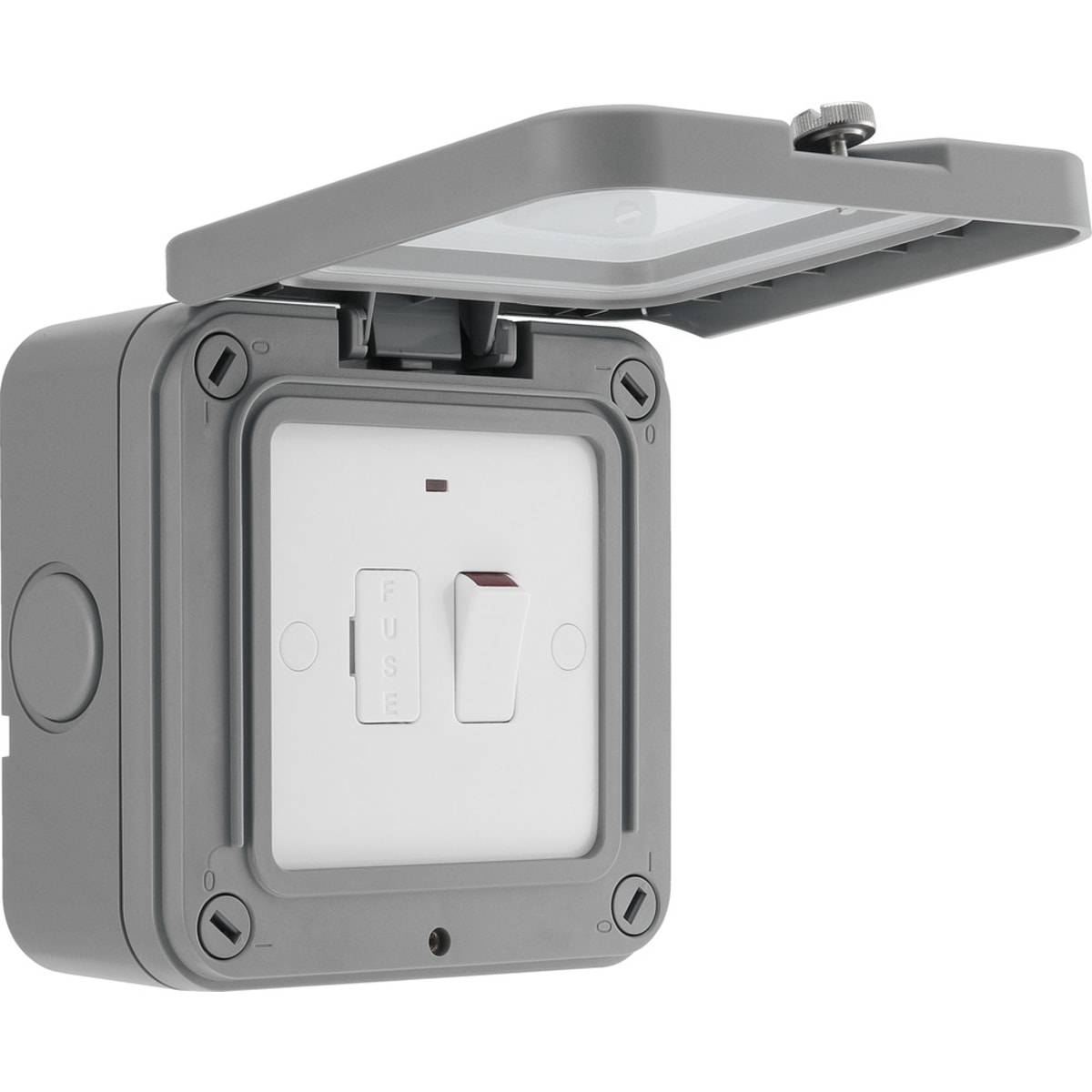

  • Weatherproof: IP66 rated providing weather and dust protection. Includes hinged cover to withstand most weather conditions when closed.
  • Robust Design: Durable and high impact outdoor power socket, for safe electricity supply outdoors. Switch can be operated without the need to open the cover.

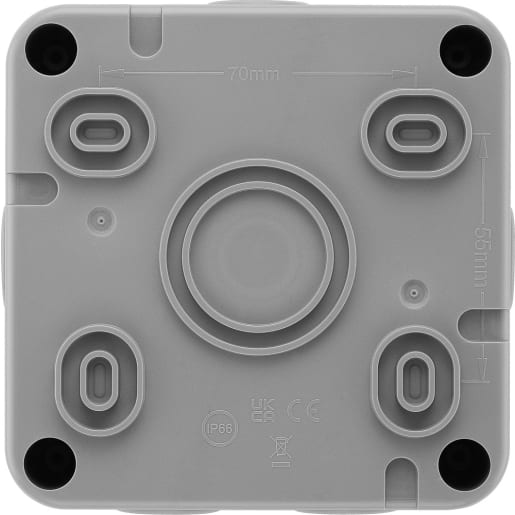

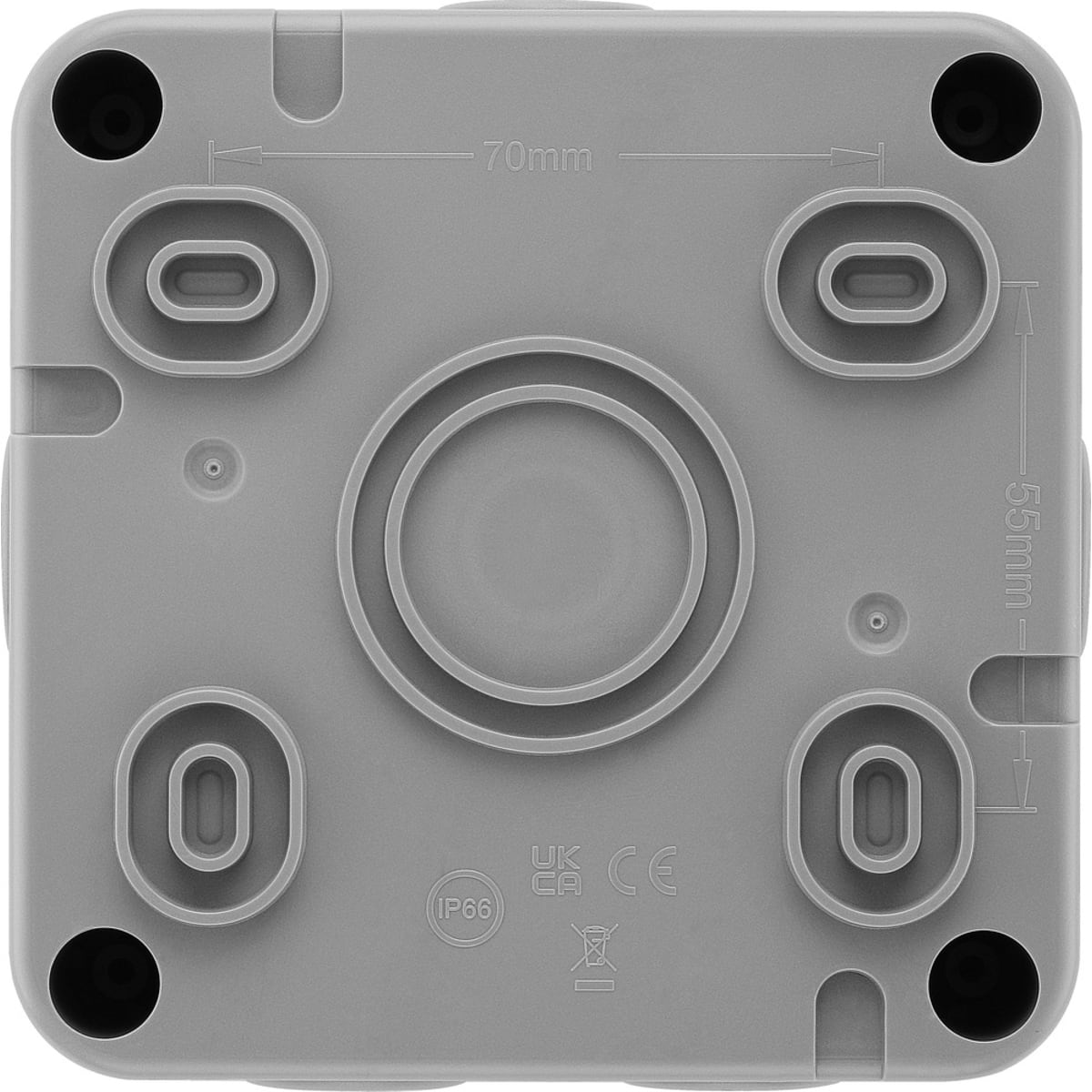

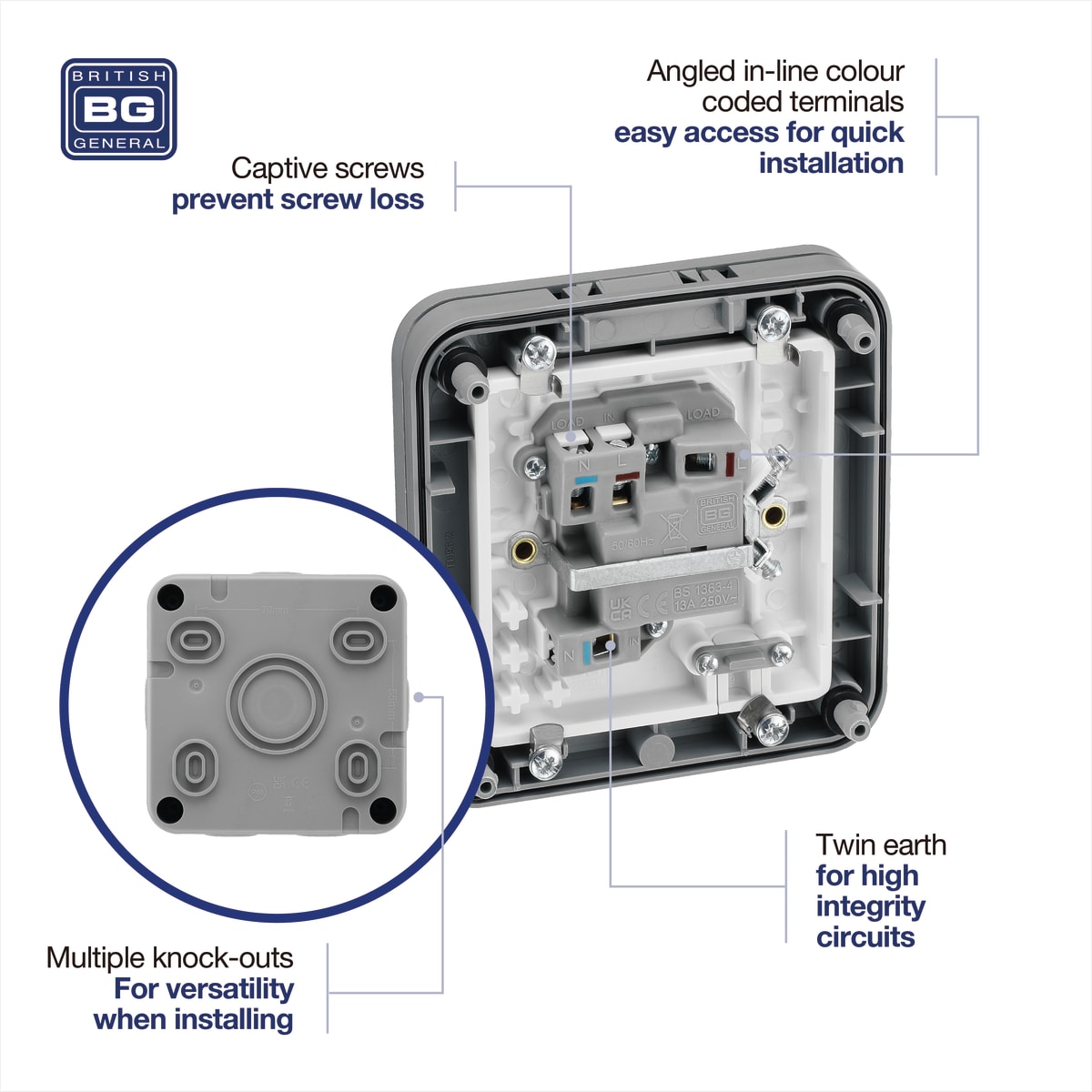

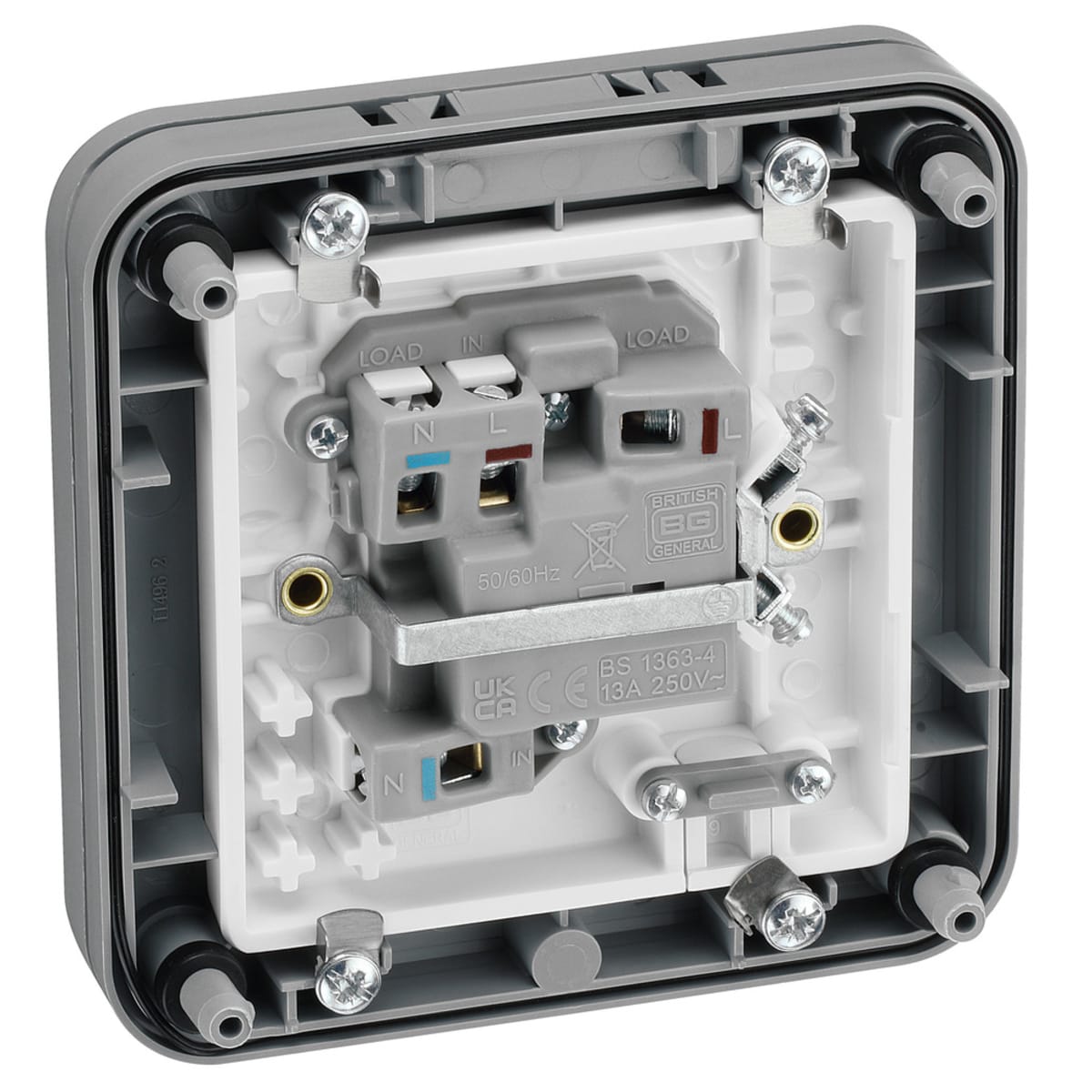

  • Easy Installation: Captive, backed out terminal screws for a quick installation and to prevent screw loss. Multiple knockouts available and fixing centres with horizontal and vertical adjustment for versatility.
  • 25 Year Warranty
  • Certified to BS 1363 Part 4 standard. ASTA certified.
IDELWP5302 Electrics & Plumbing > Electrical > Switches & Sockets > BG Weatherproof Switched Fused Connection Unit with LED IP66 Grey

Next day delivery

Collect today


Please sign in/register to save items.

This BG switched fused connection unit with LED is ideal for spur circuits and hardwired outdoor appliances, allowing isolation from the mains supply and easy access to the fuse. Supplied with IP66 rated high-impact weatherproof case with multiple knockouts for straight forward installation.
Features & benefits
  • Outdoor 13A LED Fuse Spur Switch with Flex Outlet: Operates one fixed appliance in a circuit, providing built-in access to the fuse. Ideal for spur circuits. The fuse is clearly labelled.
  • Weatherproof: IP66 rated providing weather and dust protection. Includes hinged cover to withstand most weather conditions when closed.
  • Robust Design: Durable and high impact outdoor power socket, for safe electricity supply outdoors. Switch can be operated without the need to open the cover.
  • Easy Installation: Captive, backed out terminal screws for a quick installation and to prevent screw loss. Multiple knockouts available and fixing centres with horizontal and vertical adjustment for versatility.
  • 25 Year Warranty
  • Certified to BS 1363 Part 4 standard. ASTA certified.

Specifications
Product Name BG Weatherproof Switched Fused Connection Unit with LED IP66 Grey
Brand BG Electrical
Product Type Fused Connection Units
Manufacturer Name BG Electrical
Manufacturer Part Number WP53-02
EAN 5050765022330
Warranty Period 25  years
Commercial Or Domestic Use Both
Range Outdoor Fused Connection Units
Colour Grey
Application Interior/External
Pack Quantity 1
Country Of Origin China
Product Width 63  mm
Product Weight 0.34  kg
Product Height 115  mm
Product Length 115  mm
